Miniature optical shutter D1

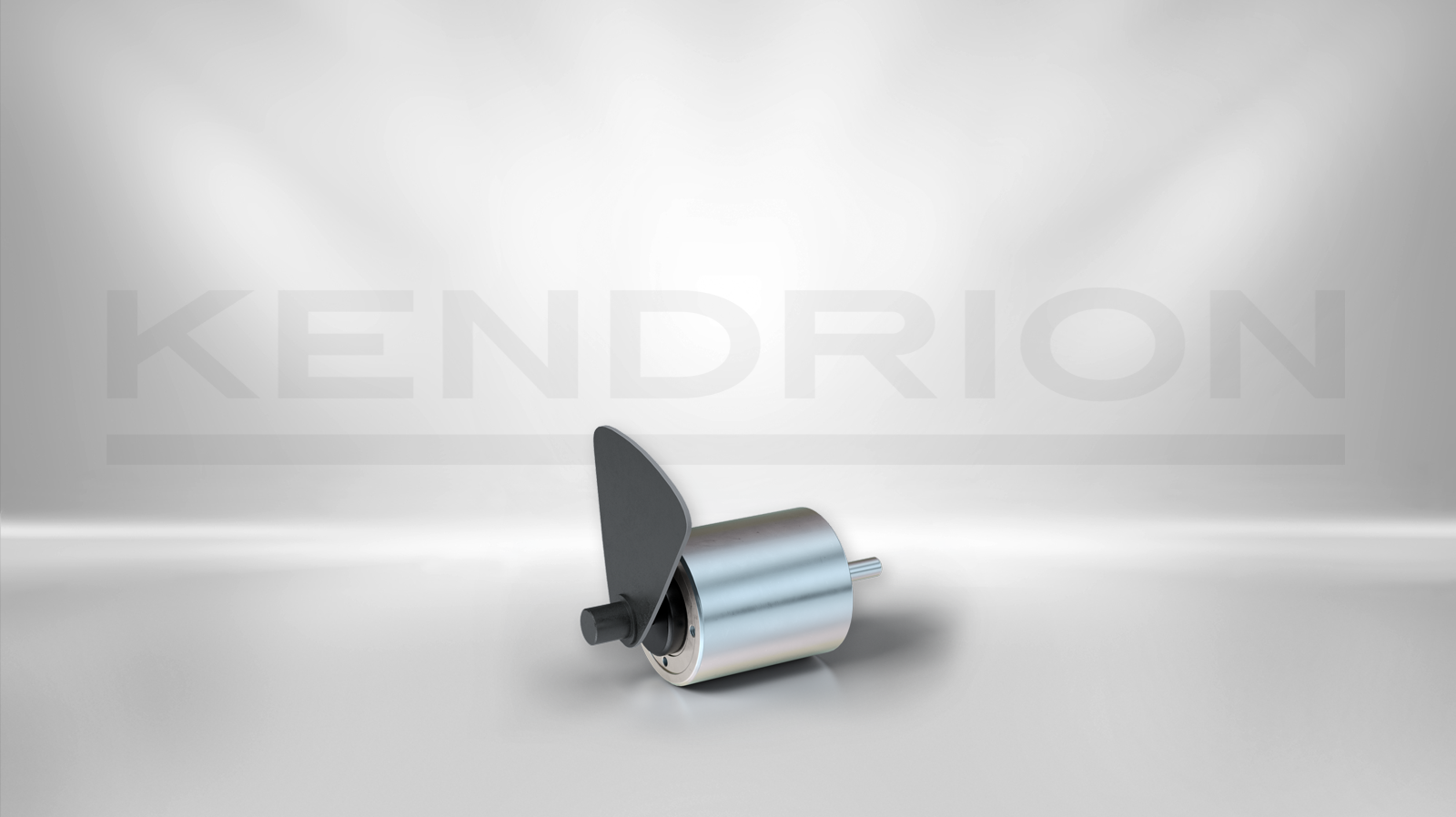

D16 Shutter
Based on our smallest rotary solenoid D1, Kendrion offers a compact miniature shutter in the field of optical safety technology. The D16 shutter is characterized above all by its high reliability and long service life of 2.5 million switching cycles. In addition, this shutter has a fast closing time of less than 20 ms.
Technical details
| Description | Value |
|---|---|
| Rotation angle | 65° |
| Return mechanism | Spring return |
| End position detection | No |
| Housing type | round |
| Nominal voltage | 12V DC V |
| Duty cycle | 100 % |
| Power consumption | 2,4 W |
| Thermal class | B (130 °C) |
| Connection | Wire 20 cm |
| Dimensions | Diameter 15 / Length 20 mm |
| Switching time | ≤ 20 ms |
| Switching frequency | max. 5 Hz |
