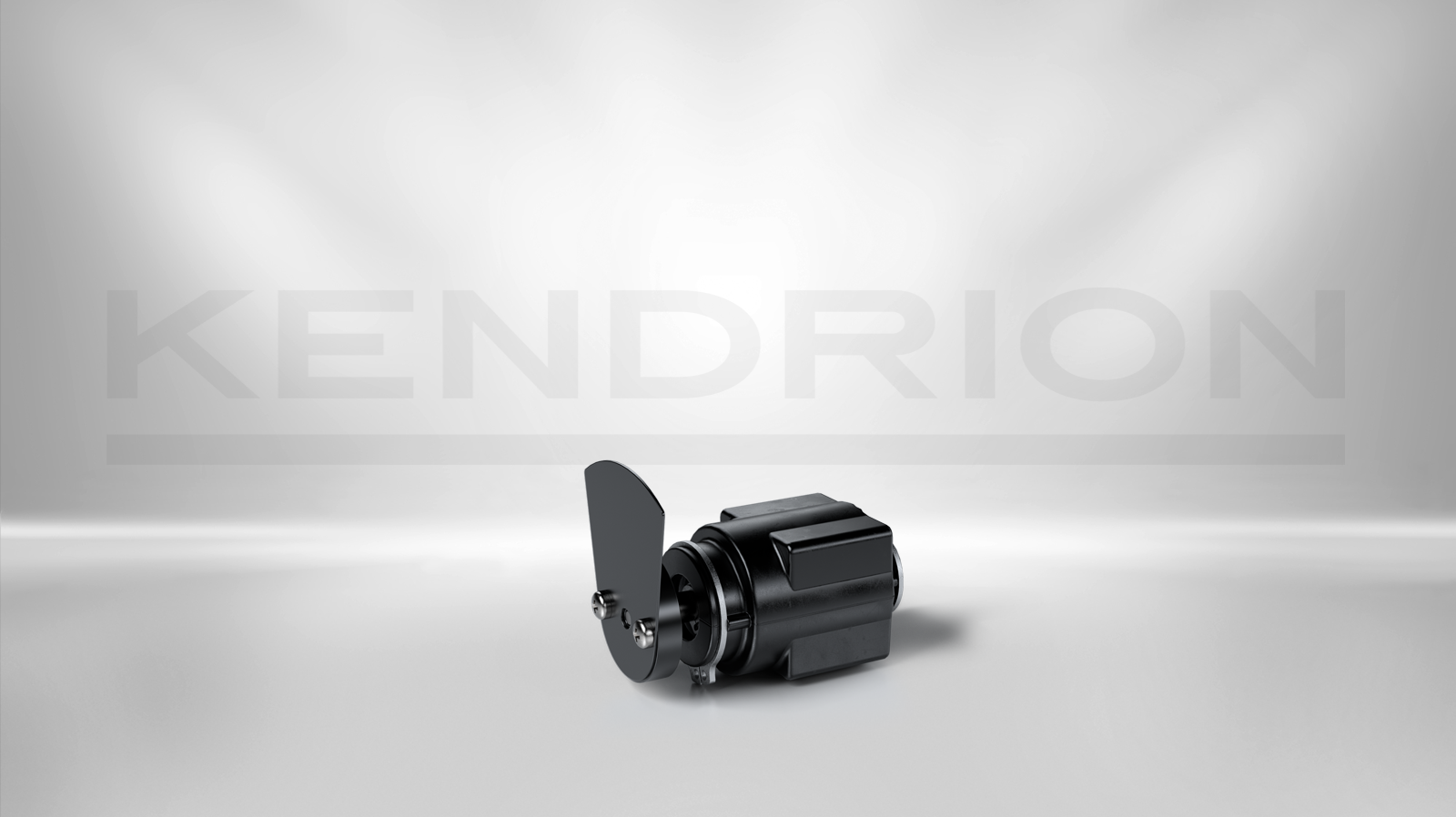

Bistable optical shutter CDR030
CDR030 Shutter
Based on the CDR030 bistable rotary solenoid, Kendrion offers a bistable shutter in the field of optical safety technology, which enables de-energized holding in both end positions. The end positions are held by the built-in permanent magnets. This makes the shutter design very energy-saving. The CDR030 shutter is also characterized by its high reliability and long service life of 20 million switching cycles. In addition, the shutter has a typical closing time of 20 ms.
Technical details
| Description | Value |
|---|---|
| Rotation angle | 60° / 90° |
| Return mechanism | Two end positions |
| End position detection | Yes optional |
| Housing type | square |
| Nominal voltage | 12V DC / 24V DC V |
| Duty cycle | 15% ED % |
| Power consumption | 30W / 24V DC 8W / 12V DC W |
| Thermal class | B (130 °C) |
| Connection | Wire 20 cm |
| Dimensions | 30 x 30 x 57,7mm |
| Switching time | ≤ 20 ms ms |
| Switching frequency | max. 30 Hz Hz |
