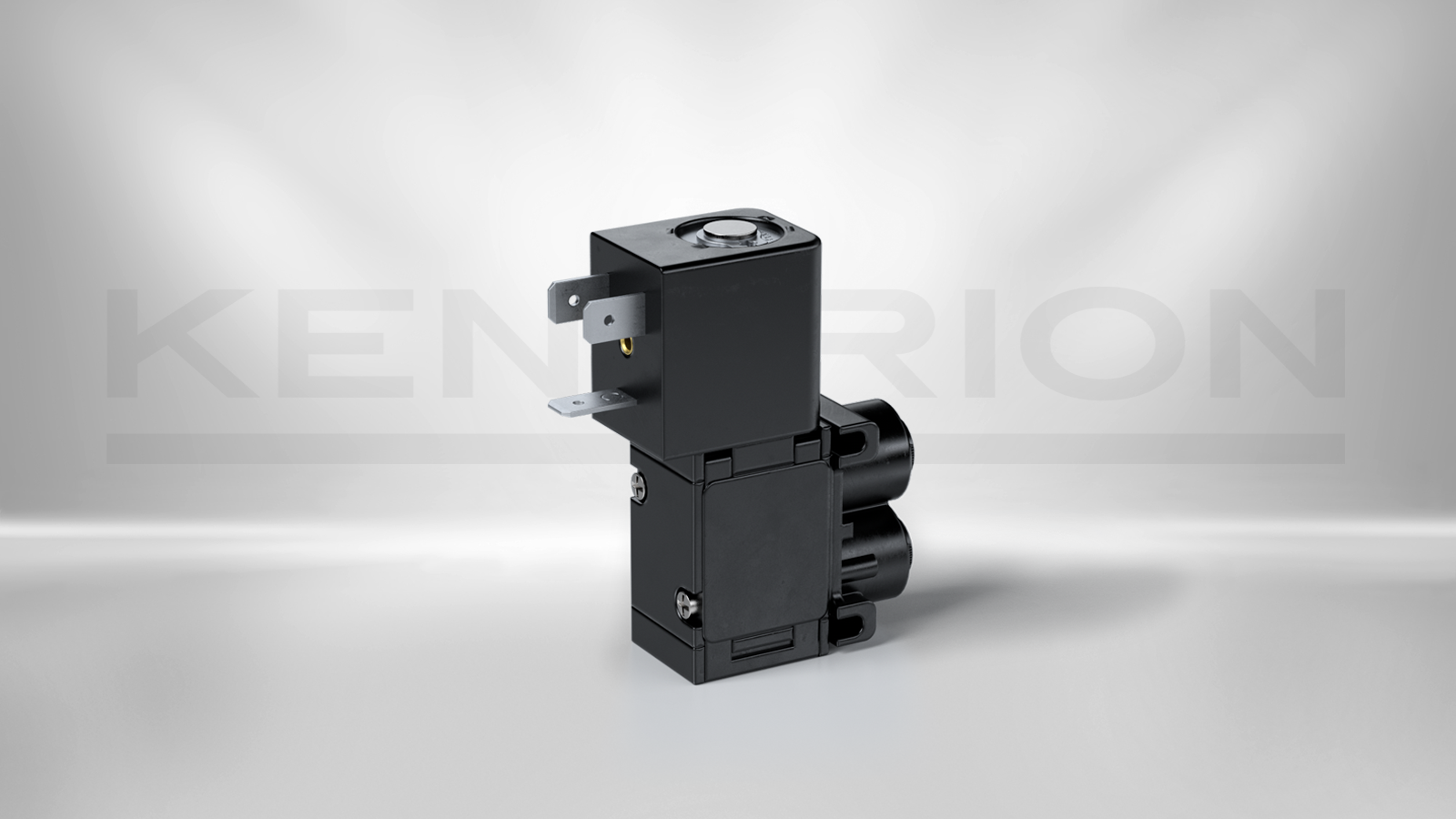

Fluid Isolation Valve Type 97

97.130.04.00

The fluid isolation valves with their chemical resistance, compact size and high flow rates are suitable for many applications. On request other sealing materials like EPDM or FKM can be used. Other technical data like electrical connections or the operating pressure range can be adapted.

Technical details

Description Value
Function 2/2 way NO
Pressure range -0.9 - 3.5 bar
Nominal orifice 3.5 mm
Type of pneumatic connection Push-in for 6 mm tube
Kv-value 3.5 l/min
Size 22 mm
Actuation type electrically actuated
Duty cycle 100 % ED
Type of electric connection Flat plug receptacles 6.3 x 0.8, industry standard fitting for plug-in connector type B according to EN60529 (not included in delivery) or leads
Medium Water and filtered (5 µm), lubricated and non lubricated air
Nominal power 4.6 W
Nominal voltage 24 V DC
Nominal current 250 mA
Returning mechanism Spring
Protection class IP65 (with plug-in socket and occupied pneumatic connections or leads)
Ambient temperature 0 … + 55 °C
Valve type Poppet valve
Materials Housing: PPSU, sealing: either EPDM, NBR or FKM
Actuation directly controlled
