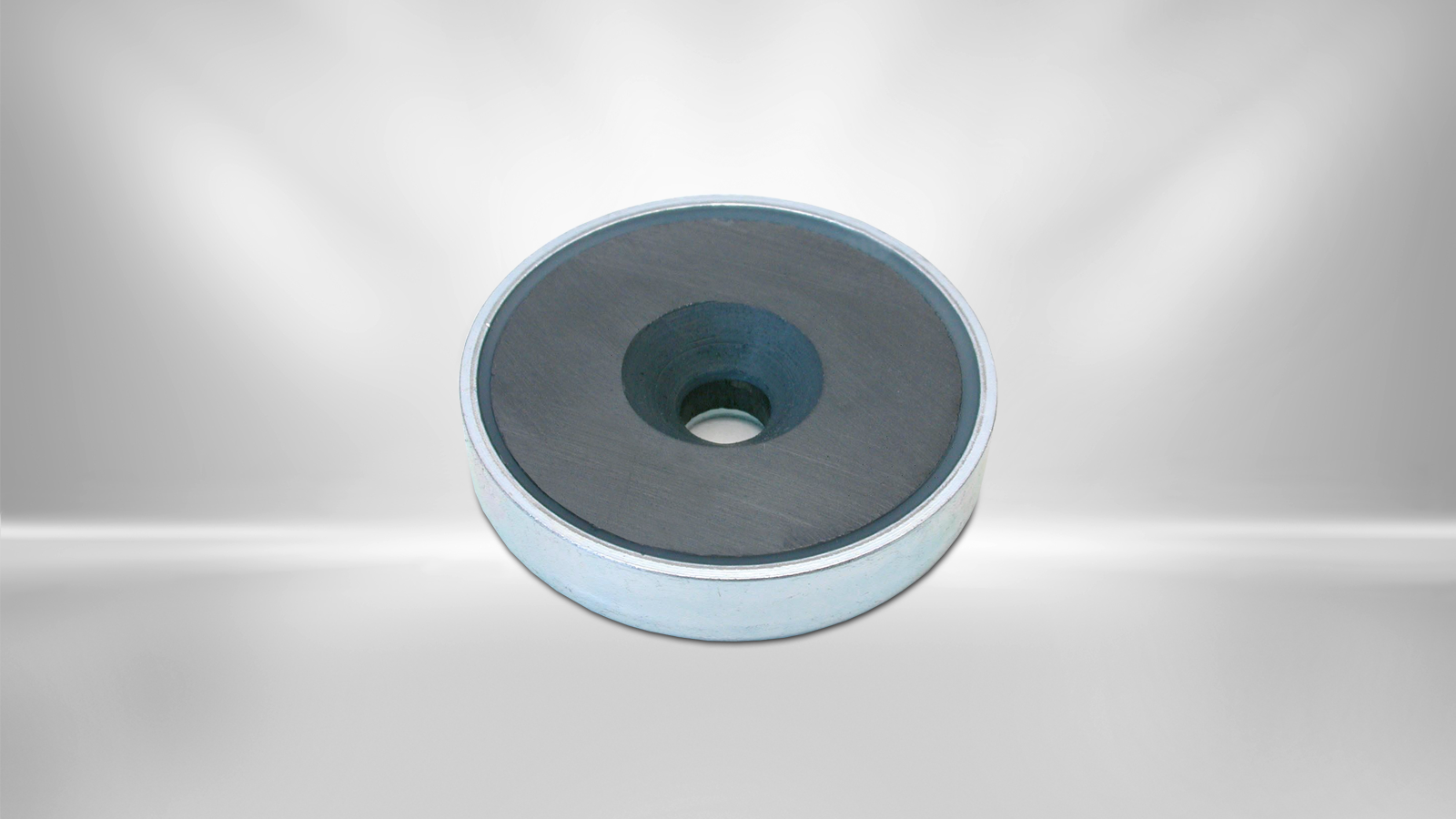

Permanent flat gripper HF
550 4039 40
Flat gripper with a hard ferrite magnet in a steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has a bore and countersink and can be screwed on with a countersunk screw.
Technical details
| Description | Value |
|---|---|
| Design | with bore and counter bore |
| Material | hard ferrite |
| Force | 90 N |
| Diameter | 40 mm |
| Height | 8 mm |
| Diameter bore | 5.5 mm |
| Diameter counter bore | 11.5 mm |
| Weight | 52 g |
| Temperature | 200 °C |
| Housing | galvanized |
