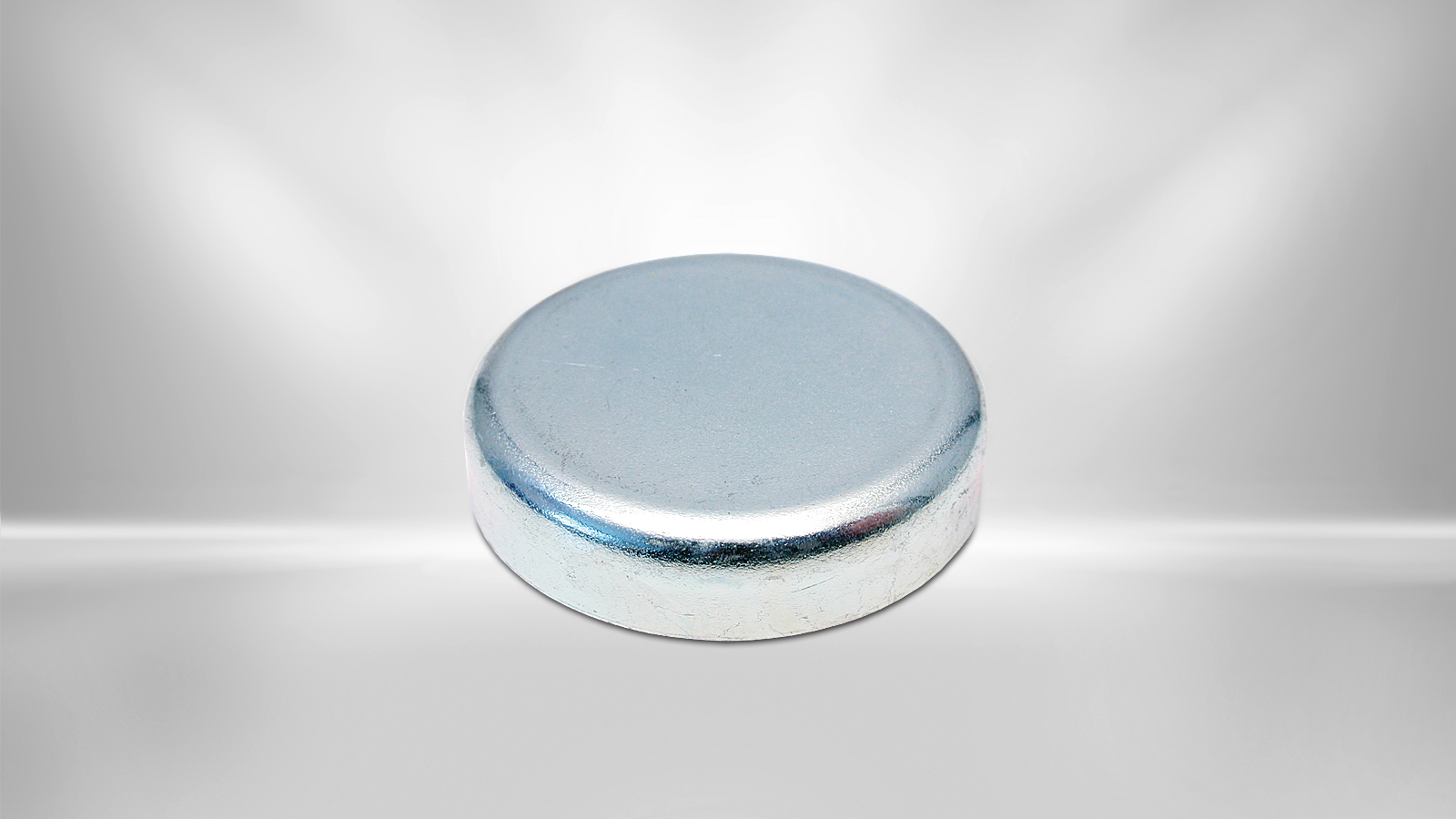

Permanent flat gripper HF
550 4038 057
Flat gripper with a hard ferrite magnet in a steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has no hole and is usually glued or pressed in.
Technical details
| Description | Value |
|---|---|
| Design | without thread |
| Material | hard ferrite |
| Force | 280 N |
| Diameter | 57 mm |
| Height | 10.5 mm |
| Weight | 141 g |
| Temperature | 200 °C |
| Housing | galvanized |
