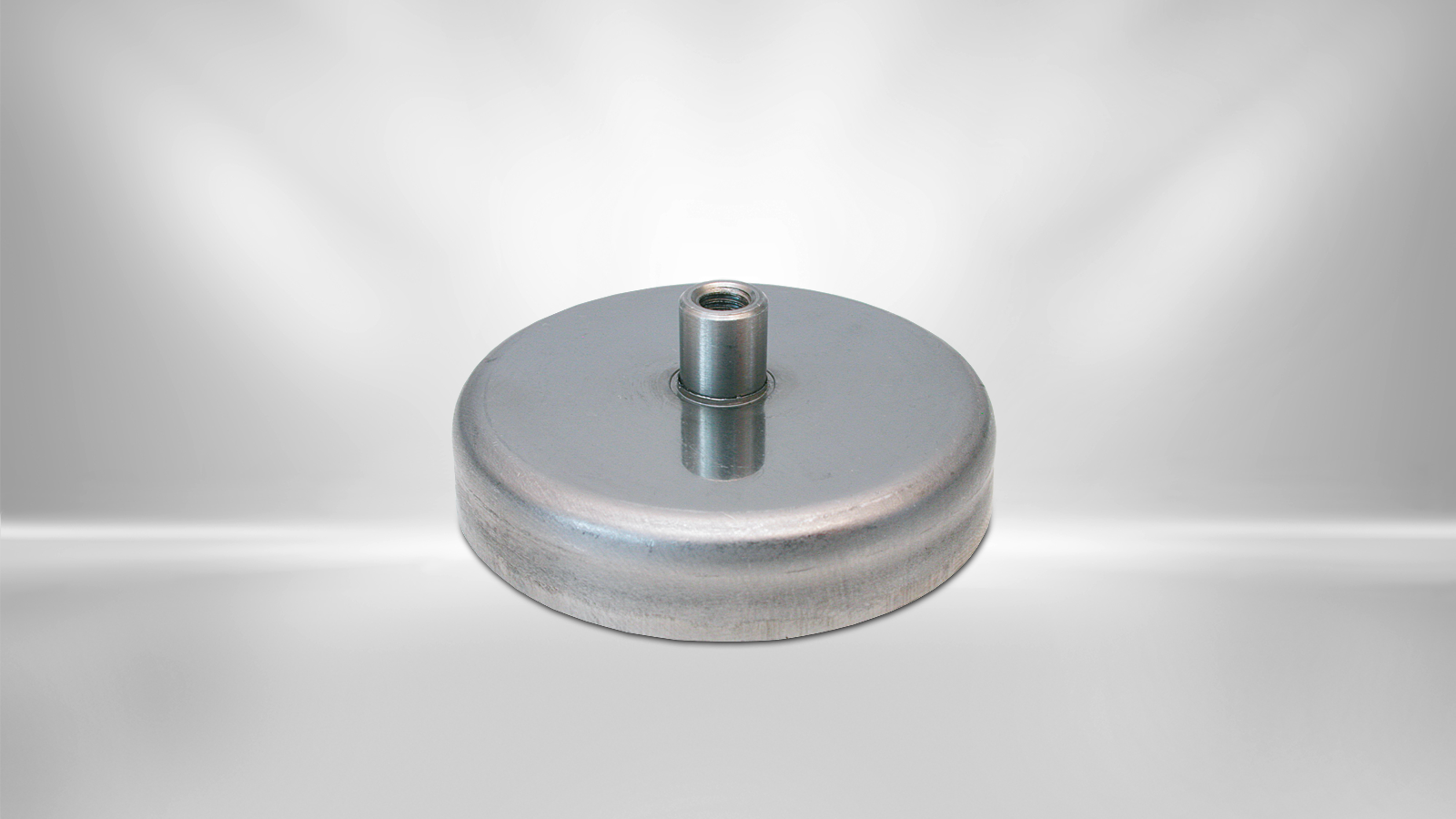

Permanent flat gripper HF
550 4036 32
Flat gripper with a hard ferrite magnet in a stainless steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has a threaded socket with an internal thread.
Technical details
| Description | Value |
|---|---|
| Design | with threaded bush |
| Material | hard ferrite |
| Force | 64 N |
| Diameter | 32 mm |
| Height | 7 mm |
| Total height | 16 mm |
| Diameter threaded bush | 8 mm |
| Weight | 31 g |
| Thread | M5 |
| Temperature | 220 °C |
| Housing | stainless steel |
