Ultra Compact Door Lock

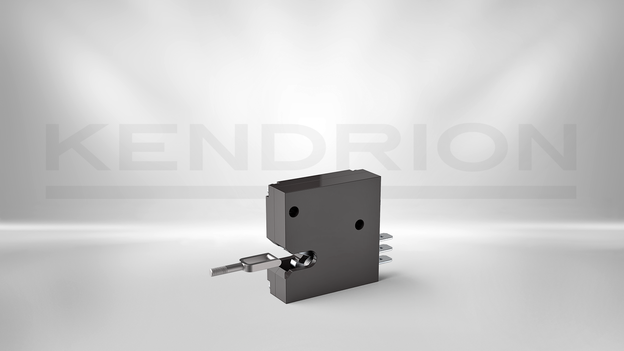

Ultra Compact Lock
The Ultra Compact Lock combines high locking forces with minimal installation space. High shock resistance of up to 300 g in all axes and a service life of 10,000 switching cycles are optionally available. The Ultra Compact Lock is equipped with a microswitch for detecting door locking. For safety reasons, the door lock has an emergency opener. A door hook is available and can be ordered together or separately.
- Very high shock resistance (optional up to 300 g in all axes)
- Universally applicable even in confined spaces
- High lifetime
- Robust and compact design
- Ready-to-install
- Incl. door hook
- Emergency opener
Want to learn more about the Ultra Compact Lock?
Technical details
| Description | Value |
|---|---|
| Usage of the locking | Snap in / linear |
| Way of locking | self-locked / monostable |
| Nominal voltage | 2.5 V |
| Abmessungen | 45 x 45 x 15 mm |
| Power consumption | for 500ms max. 2 W |
| Max. static holding force | 5000 N |
| Service life | 10,000 switching cycles |
| Emergency opener | Lever behind the lock |
