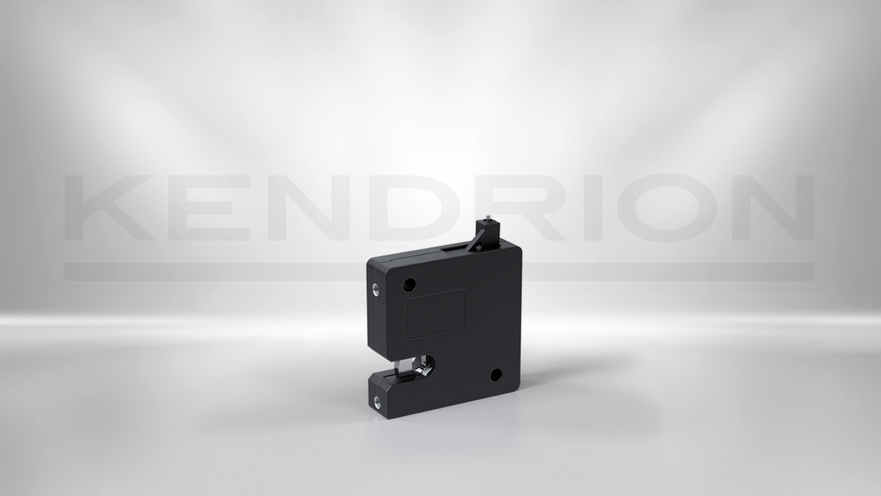

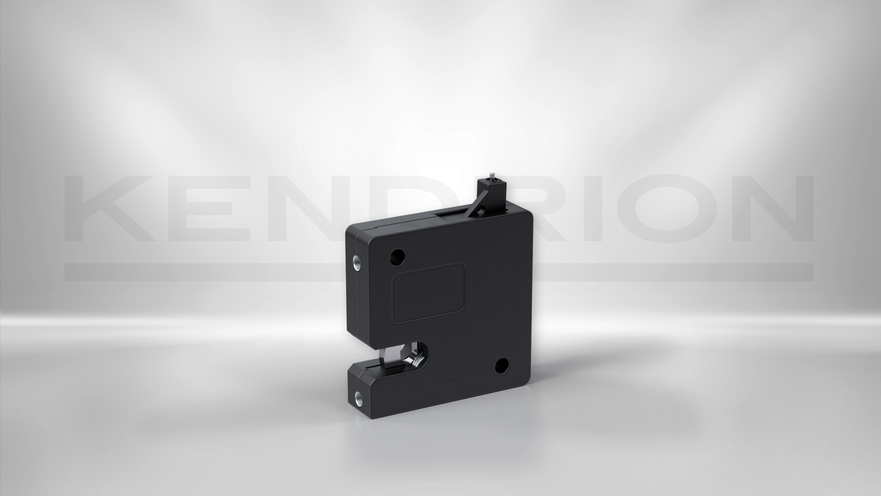

Solenoid Door Lock, Active-Locked (AL)
AL-7011-F-24V DC 10%ED
play
The compact solenoid lock AL convinces with a very high static holding force.
The solenoid door lock integrates a high-performance linear solenoid, which has bistable design.
The bistable design enables that the door will be locked only if the solenoid is energized for a short time. In order to unlock, the solenoid needs to be energized for a short time as well. The polarity needs to be reversed.
Technical details
| Description | Value |
|---|---|
| Usage of the locking | Snap in / linear |
| Way of locking | Active-locked / bistable |
| Nominal voltage | 24 V |
| Duty cycle | 10 % |
| Power consumption | 36 W |
| Max. static holding force | 1600 N N |
| Max. load force for electrical unlocking | 400 N |
| Connection | Lead 18 cm |
| Snap-in function | Yes |
| Emergency opener | Yes |
| Operating temprature | 0 - 80 °C |
| Dimensions | 70 x 70 x 18 mm |
