Oscillating solenoids
Efficient oscillating solenoids for diverse requirements
Oscillating solenoids perform important functions in industrial plants such as loading, conveying, packing, dosing and piping. To offer an optimal solution for every requirement, Kendrion develops different versions of the drive systems with an AC or pulsed DC signal. The special manufacturing process of the oscillating solenoids ensures that the electromagnets work more efficiently and still deliver the same performance. Oscillating solenoids from Kendrion are important drive components in feeding technology for the automated and orderly provision of workpieces, but are also used in sorting and conveying technology.
Need some help? Try our new Oscillating Solenoid Product Guide.
Products
(71)
|
Title
|
Type
|
Nominal voltage (V)
|
Nominal air gap (mm)
|
Oscillating frequency (rpm)
|
Length (mm)
|
Width (mm)
|
Height (mm)
|
Thermal class
|
Area of application
|
Apparent Power (VA)
|
Connection
|
Load weight
|
Mounting
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

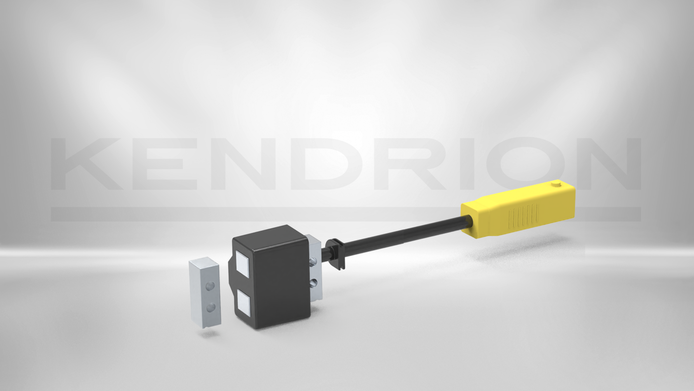

Vibratory feeder coil OAC003 | OAC003.523053 | 230 | 2 | 6000 | 29 | 42 | 40 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 15 | - | - | - | |
|
Vibratory feeder coil OAC003 | OAC003.500055 | 230 | 1 | 6000 | 29 | 42 | 40 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 19 | - | - | - | |
|
Vibratory feeder coil OAC005 | OAC005.501601 | 230 | 1 | 6000 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 60 | - | - | - | |
|
Vibratory feeder coil OAC005 | OAC005.500026 | 230 | 1 | 6000-7200 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 70 | - | - | - | |
|

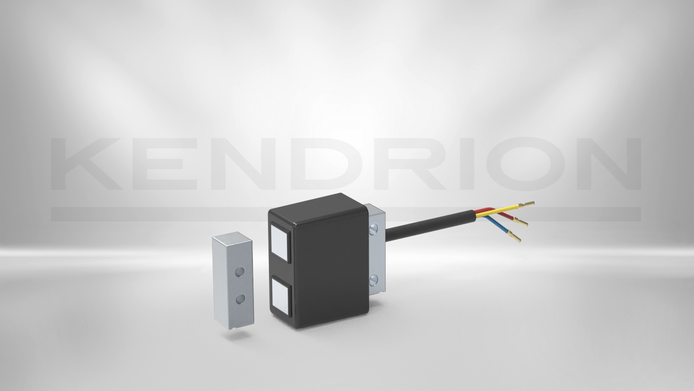

Vibratory feeder coil OAC005 | OAC005.508201 | 230 | 0.8 | 6000-7200 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 92 | - | - | - | |
|
Vibratory feeder coil OAC005 | OAC005.508205 | 230 | 0.8 | 6000-7200 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 92 | - | - | - | |
|
Vibratory feeder coil OAC005 | OAC005.510800 | 230 | 1.5 | 6000 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 100 | - | - | - | |
|
|
Vibratory feeder coil OAC005 | OAC005.500038 | 230 | 0.8 | 6000-7200 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 100 | - | - | - | |
|
Vibratory feeder coil OAC005 | OAC005.500039 | 230 | 0.8 | 6000-7200 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 100 | - | - | - | |
|
Vibratory feeder coil OAC005 | OAC005.510841 | 230 | 1.5 | 6000 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 100 | - | - | - | |
|
Vibratory feeder coil OAC005 | OAC005.500065 | 230 | 1.5 | 6000 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 100 | - | - | - | |
|

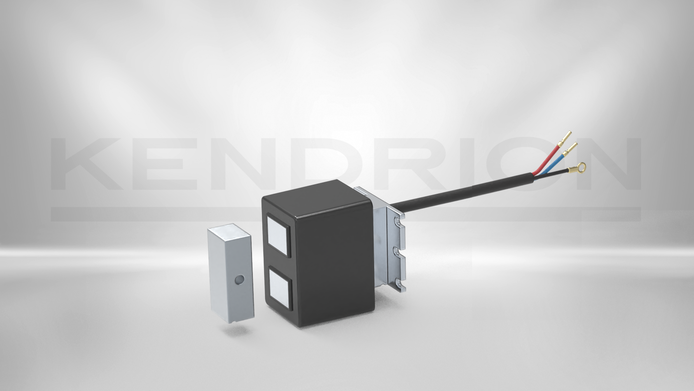

Vibratory feeder coil OAC006 | OAC006.000300 | 230 | 2.5 | 6000 | 42 | 64 | 63 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 70 | - | - | - | |
|
Vibratory feeder coil OAC006 | OAC006.513021 | 230 | 2.5 | 6000 | 42 | 64 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 78 | - | - | - | |
|

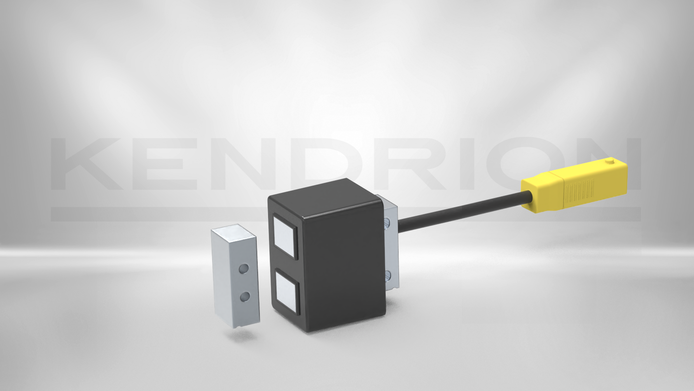

Vibratory feeder coil OAC006 | OAC006.500060 | 230 | 2.5 | 6000 | 42 | 64 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 78 | - | - | - | |
|
Vibratory feeder coil OAC006 | OAC006.500170 | 230 | 2.5 | 6000 | 42 | 64 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 78 | - | - | - | |
|
Vibratory feeder coil OAC007 | OAC007.012301 | 230 | 3 | 6000 | 44 | 77 | 77 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 136 | - | - | - | |
|
Vibratory feeder coil OAC007 | OAC007.271501 | 230 | 3 | 6000 | 44 | 77 | 74 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 136 | - | - | - | |
|
Vibratory feeder coil OAC007 | OAC007.276201 | 230 | 3 | 3000 | 44 | 77 | 74 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 162 | - | - | - | |
|
Vibratory feeder coil OAC007 | OAC007.509002 | 230 | 1 | 6000 | 44 | 77 | 74 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 175 | - | - | - | |
|
Vibratory feeder coil OAC007 | OAC007.509003 | 230 | 1 | 6000 | 44 | 77 | 74 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 175 | - | - | - | |
|

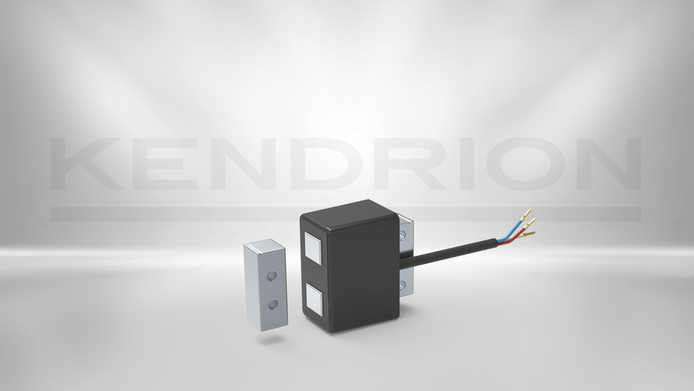

Vibratory feeder coil OAC007 | OAC007.522500 | 230 | 1.2 | 6000-7200 | 44 | 77 | 74 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 253 | - | - | - |
