Touchpanel SPS
CODESYS Panel SPS für die Automation

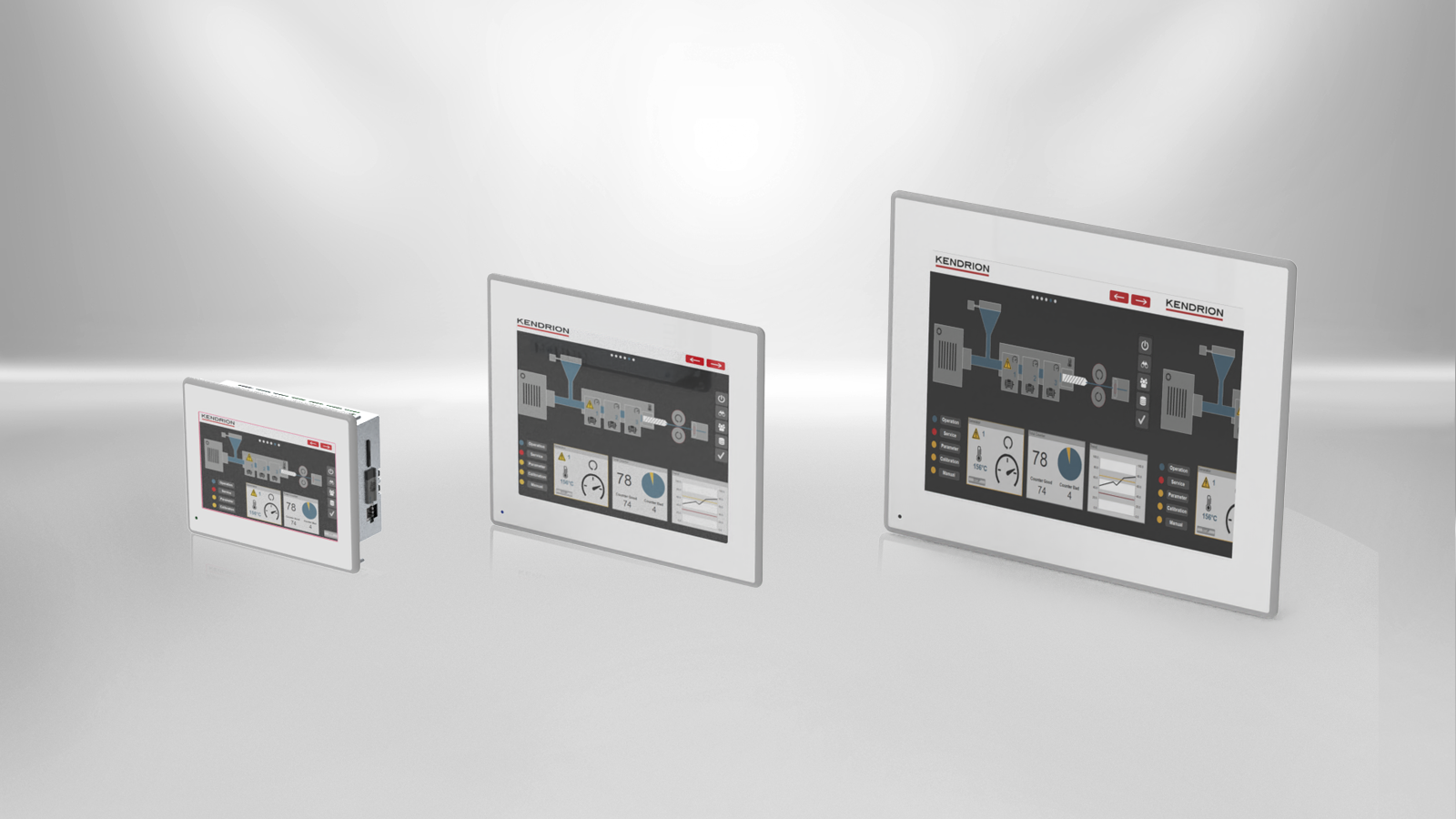

Der Kendrion Scout ist eine Panel-SPS, die Visualisierung, Touch-Bedienung und Steuerungstechnik in einem Gerät vereint. Die Steuerung wird mit dem CODESYS Development System V3 programmiert und ist als preiswerte Industriesteuerung für Maschinen und Anlagen ausgelegt.
Der Kendrion Scout ist in Gerätevarianten mit CODESYS Softmotion und Softmotion+CNC Robotics verfügbar. Für erhöhte Leistungsanforderungen stehen Varianten mit Quad-Core-Prozessoren zur Verfügung. Der Kendrion Scout ist mit dem Kendrion FIO Safety I/O System kombinierbar.
Der Kendrion Scout verfügt über moderne Feldbusschnittstellen für die Kommunikation mit Feldgeräten und übergeordneten Systemen.
Produkte
(11)
|
Titel
|
Typ
|
Konfiguration
|
Funktion
|
Bauart
|
Produktstatus
|
Display
|
Auflösung
|
Prozessor
|
Betriebssystem
|
Software
|
Hauptspeicher / Arbeitsspeicher
|
Remanenter Speicher
|
Massenspeicher / Wechseldatenträger
|
Interner Speicher / Laufwerk
|
Schnittstellen
|
Feldbus Schnittstellen
|
Gehäusewerkstoff
|
Abmessungen (B x H x T)
|
Versorgungsspannung
|
Temperaturbereich
|
Zulassungen
|
Statusanzeige
|
Schutzklasse
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

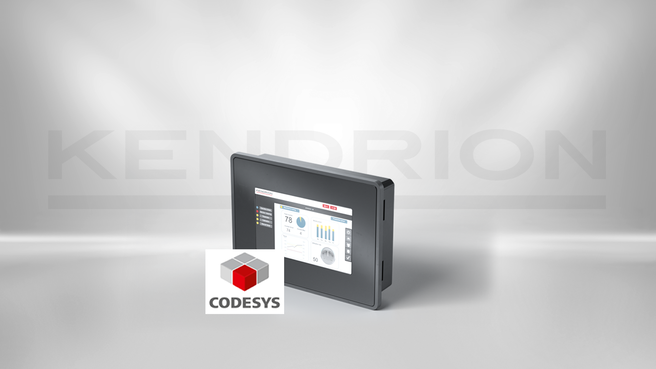

Kuhnke Vico 404 CODESYS PLC |
677 800 06 | Bedienpanel mit CODESYS PLC | Bedienpanel mit Steuerungsfunktion | Frontpanel Einbaugerät | Standard Produkt | 4.3" wide | 480 x 272, PSP | ARM Cortex-A8 - 1 GHz | Linux RT | CODESYS V3 Soft PLC, TargetVisu, WebVisu | 512 | Flash | Flash | 4 GB Flash Speicher | 1 x Ethernet 10/100Mbit, 1 x RS-232/RS-485, 1 x USB 2.0 host, max 500 mA | EtherCAT-MainDevice, OPC UA Server, Modbus-Client TCP/RTU | Kunststoff | 107 x 147 x 34 mm | 24 VDC / (10 VDC … 32 VDC) | 0 ... +50°C | CE, cULus | - | - | |
|

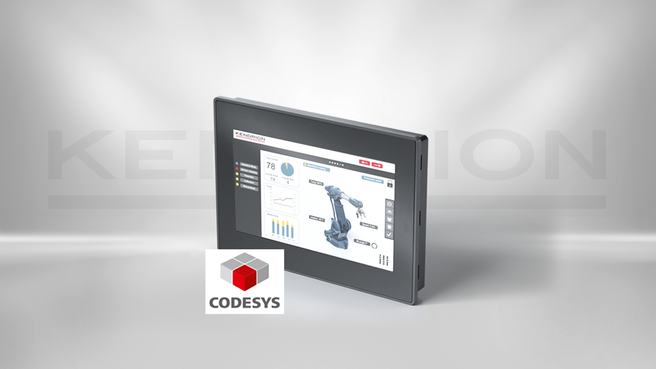

Kuhnke Vico 704 CODESYS PLC |
677 800 16 | Bedienpanel mit CODESYS PLC | Bedienpanel mit Steuerungsfunktion | Frontpanel Einbaugerät | Standard Produkt | 7" wide | 800 × 480 (WVGA) | ARM Cortex-A8 - 1 GHz | Linux | CODESYS V3 Soft PLC, TargetVisu, WebVisu | 512 | Flash | Flash | 4 GB Flash Speicher | 1 x Ethernet 10/100Mbit, 1 x RS-232/RS-485, 1 x USB 2.0 host, max 500 mA | EtherCAT-MainDevice, OPC UA Server, Modbus-Client TCP/RTU | Kunststoff | 187 x 147 x 34 mm | 24 VDC / (10 VDC … 32 VDC) | 0 ... +50°C | CE, cULus | - | - | |
|

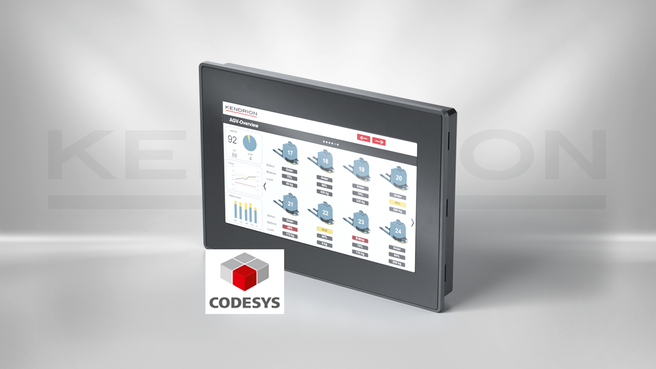

Kuhnke Vico 1004 CODESYS PLC |
677 800 26 | Bedienpanel mit CODESYS PLC | Bedienpanel mit Steuerungsfunktion | Frontpanel Einbaugerät | Standard Produkt | 10.1" wide | 1024x600 (WSVGA) | ARM Cortex-A8 - 1 GHz | Linux | CODESYS V3 Soft PLC, TargetVisu, WebVisu | 512 | Flash | Flash | 4 GB Flash Speicher | 1 x Ethernet 10/100Mbit, 1 x RS-232/RS-485, 1 x USB 2.0 host, max 500 mA | EtherCAT-MainDevice, OPC UA Server, Modbus-Client TCP/RTU | Kunststoff | 282 x 197 x 35 mm | 24 VDC / (10 VDC … 32 VDC) | 0 ... +50°C | CE, cULus | - | - | |
|
Scout 1026 CODESYS PLC |
640 210 109 XXX 400 | CODESYS Panel PLC | Touch Panel PLC | Frontpanel Einbaugerät | Verfügbar – Nicht empfohlen für Neuprojekte (NCNR) | 10.4" | 800 x 600 (SVGA) | CPU Freescale i.MX6X Quadcore ; 1 GHz | Linux RT | CODESYS V3 Soft PLC, TargetVisu, WebVisu, Softmotion, SoftMotion CNC+Robotics | 1024 MB RAM | 128 kB | Flash disk 256 MB, 1 GB pSCL eMMC | SD-Karte | 2 x Ethernet 10/100/1000 MBit, 1 x RS-232, 1 x RS-485 potentialgetrennt, 1 x CAN, 1 x CAN potentialgetrennt, 2 x USB 2.0 host | EtherCAT-MainDevice, 2 x CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Aluminium-Frontplatte mit Einlegefolie | 280 x 232 x 53 mm | 24 V DC / (19, 2 ... 28, 8) | 0 ... +55°C | CE | Power LED in the front, 4 x status on the back | - | |
|
Scout 1226 CODESYS PLC |
640 212 109 XXX 400 | CODESYS Panel PLC | Touch Panel PLC | Frontpanel Einbaugerät | Verfügbar – Nicht empfohlen für Neuprojekte (NCNR) | 12.1" | 800 x 600 (SVGA) | CPU Freescale i.MX6X Solo ; 1 GHz | Linux RT | CODESYS V3 Soft PLC, TargetVisu, WebVisu, Softmotion, SoftMotion CNC+Robotics | 1024 MB RAM | 128 kB | Flash disk 256 MB, 1 GB pSCL eMMC | SD-Karte | 2 x Ethernet 10/100/1000 MBit, 1 x RS-232, 1 x RS-485 potentialgetrennt, 1 x CAN, 1 x CAN potentialgetrennt, 2 x USB 2.0 host | EtherCAT-MainDevice, 2 x CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Aluminium-Frontplatte mit Einlegefolie | 320 x 265 x 54 mm | 24 V DC / (19, 2 ... 28.8) | 0 ... +50°C | CE | RUN LED in der Front, 4 x Statusanzeige an der Rückseite | - | |
|

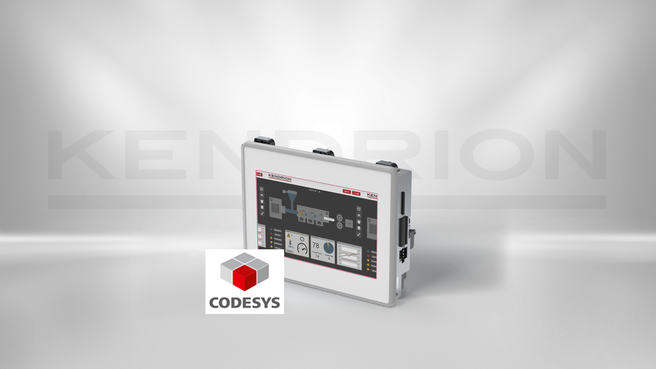

Scout 706 CODESYS PLC |
640 207 107 XXX 100 | CODESYS Panel PLC | Touch Panel PLC | Frontpanel Einbaugerät | Verfügbar – Nicht empfohlen für Neuprojekte (NCNR) | 7" wide | 800 × 480 (WVGA) | CPU Freescale i.MX6X Solo ; 1 GHz | Linux RT | CODESYS V3 Soft PLC, TargetVisu, WebVisu, Softmotion, SoftMotion CNC+Robotics | 512 MB RAM | 128 kB | Flash disk 256 MB | SD-Karte | 2 x Ethernet 10/100/1000 MBit, 1 x RS-232, 1 x RS-485 potentialgetrennt, 1 x CAN, 1 x CAN potentialgetrennt, 2 x USB 2.0 host | EtherCAT-MainDevice, 2 x CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Aluminium-Frontplatte mit Einlegefolie | 194 x 151 x 56 mm | 24 V DC / (19, 2 ... 28, 8) | 0 ... +55°C | CE | Power LED in the front, 4 x status on the back | - | |
|

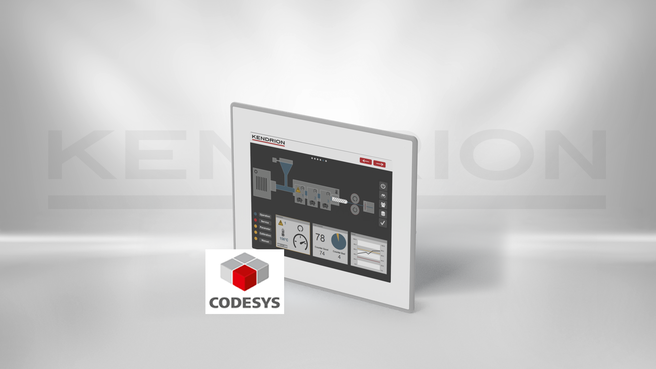

Scout 1006 CODESYS PLC |
640 210 107 XXX 100 | CODESYS Panel PLC | Touch Panel PLC | Frontpanel Einbaugerät | Verfügbar – Nicht empfohlen für Neuprojekte (NCNR) | 10.4" | 800 x 600 (SVGA) | CPU Freescale i.MX6X Solo ; 1 GHz | Linux RT | CODESYS V3 Soft PLC, TargetVisu, WebVisu, Softmotion, SoftMotion CNC+Robotics | 512 MB RAM | 128 kB | Flash disk 256 MB | SD-Karte | 2 x Ethernet 10/100/1000 MBit, 1 x RS-232, 1 x RS-485 potentialgetrennt, 1 x CAN, 1 x CAN potentialgetrennt, 2 x USB 2.0 host | EtherCAT-MainDevice, 2 x CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Aluminium-Frontplatte mit Einlegefolie | 280 x 232 x 48 mm | 24 V DC / (19, 2 ... 28, 8) | 0 ... +55°C | CE | Power LED in the front, 4 x status on the back | - | |
|

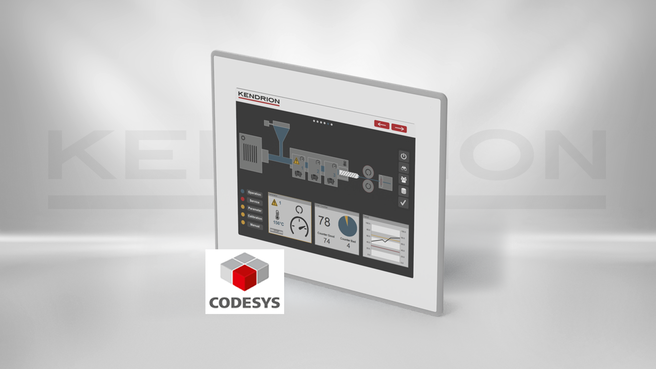

Scout 1206 CODESYS PLC |
640 212 107 XXX 100 | CODESYS Panel PLC | Touch Panel PLC | Frontpanel Einbaugerät | Verfügbar – Nicht empfohlen für Neuprojekte (NCNR) | 12.1" | 800 x 600 (SVGA) | CPU Freescale i.MX6X Quadcore ; 1 GHz | Linux RT | CODESYS V3 Soft PLC, TargetVisu, WebVisu, Softmotion, SoftMotion CNC+Robotics, Softmotion, SoftMotion CNC+Robotics | 512 MB RAM | 128 kB | Flash disk 256 MB | SD-Karte | 2 x Ethernet 10/100/1000 MBit, 1 x RS-232, 1 x RS-485 potentialgetrennt, 1 x CAN, 1 x CAN potentialgetrennt, 2 x USB 2.0 host | EtherCAT-MainDevice, 2 x CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Aluminium-Frontplatte mit Einlegefolie | 320 x 265 x 49 mm | 24 V DC / (19, 2 ... 28.8) | 0 ... +50°C | CE | RUN LED in der Front, 4 x Statusanzeige an der Rückseite | - | |
|

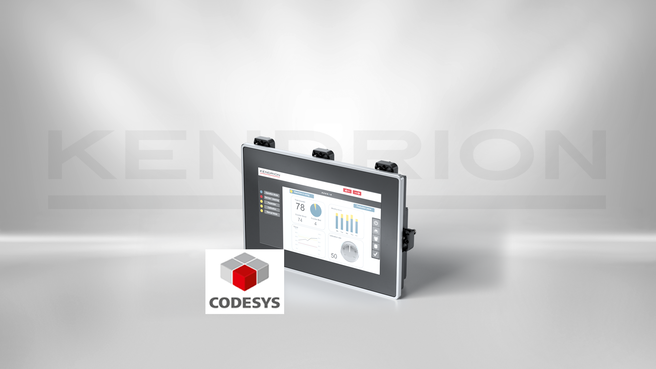

Vico MT 727 CODESYS PLC WV |
67781006 | CODESYS HMI mit PLC Funktionen | Multi-Touch Bedienpanel mit Steuerungsfunktion | Frontpanel Einbaugerät | Standard Produkt | 7" wide, IPS | 1024 x 600 / (17:10) | Arm® i.MX8M Mini ; 4 Cores ; 1.2 GHz | Linux | CODESYS V3 Soft PLC, TargetVisu, WebVisu | 1 GB | - | - | 4 GB eMMC memory, 2 MB NOR Flash, µSD Slot | 2 x LAN, 2 x USB, 1 x RS-232 | EtherCAT-MainDevice, OPC UA Server, Modbus-Client TCP/RTU | Sicherheitsglas nahtlos eingefasst in einem Alurahmen | 200 x 132 x 48 mm | 24 V DC (+20%, -20%) | 0 ... +55°C | - | - | IP 65 / IP 20 | |
|

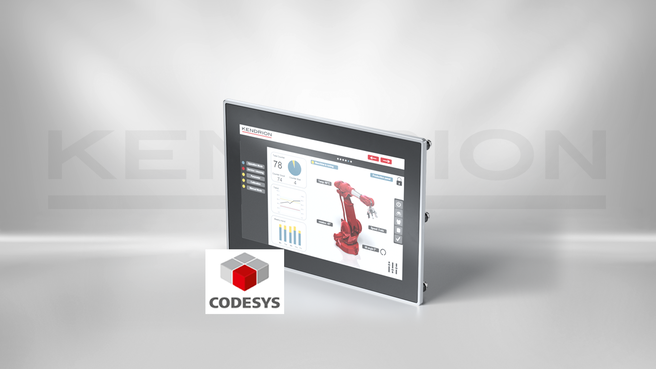

Vico MT 1027 CODESYS PLC WV |
67781016 | CODESYS HMI | Touch Panel mit CODESYS V3 HMI | Frontpanel Einbaugerät | Standard Produkt | 4, 3" wide | 1280 x 800 / (16:10) | ARM Cortex-A8 - 1 Ghz | Linux | CODESYS V3 Soft PLC, TargetVisu, WebVisu | 512 MB | - | - | Flash | 1 x LAN, 1 x USB, 1 x RS-232/485/422 | - | Kunststoff mit Einlegefolie | 265 x 187 x 41 mm | 24 V DC / (10 ... 32) | 0 ... +55°C | - | - | IP 66 / IP 20 | |
|

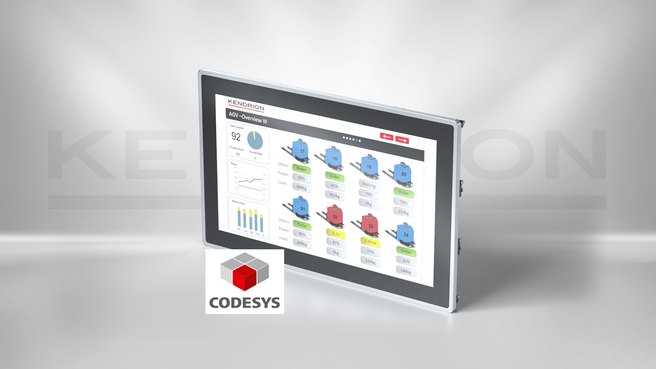

Vico MT 1027 CODESYS PLC WV |
67781036 | CODESYS HMI | Touch Panel mit CODESYS V3 HMI | Frontpanel Einbaugerät | Standard Produkt | 4, 3" wide | 1280 x 800 / (16:10) | ARM Cortex-A8 - 1 Ghz | Linux | CODESYS V3 Soft PLC, TargetVisu, WebVisu | 512 MB | - | - | Flash | 1 x LAN, 1 x USB, 1 x RS-232/485/422 | - | Kunststoff mit Einlegefolie | 265 x 187 x 41 mm | 24 V DC / (10 ... 32) | 0 ... +55°C | - | - | IP 66 / IP 20 |
