Reliable, quiet and intelligent

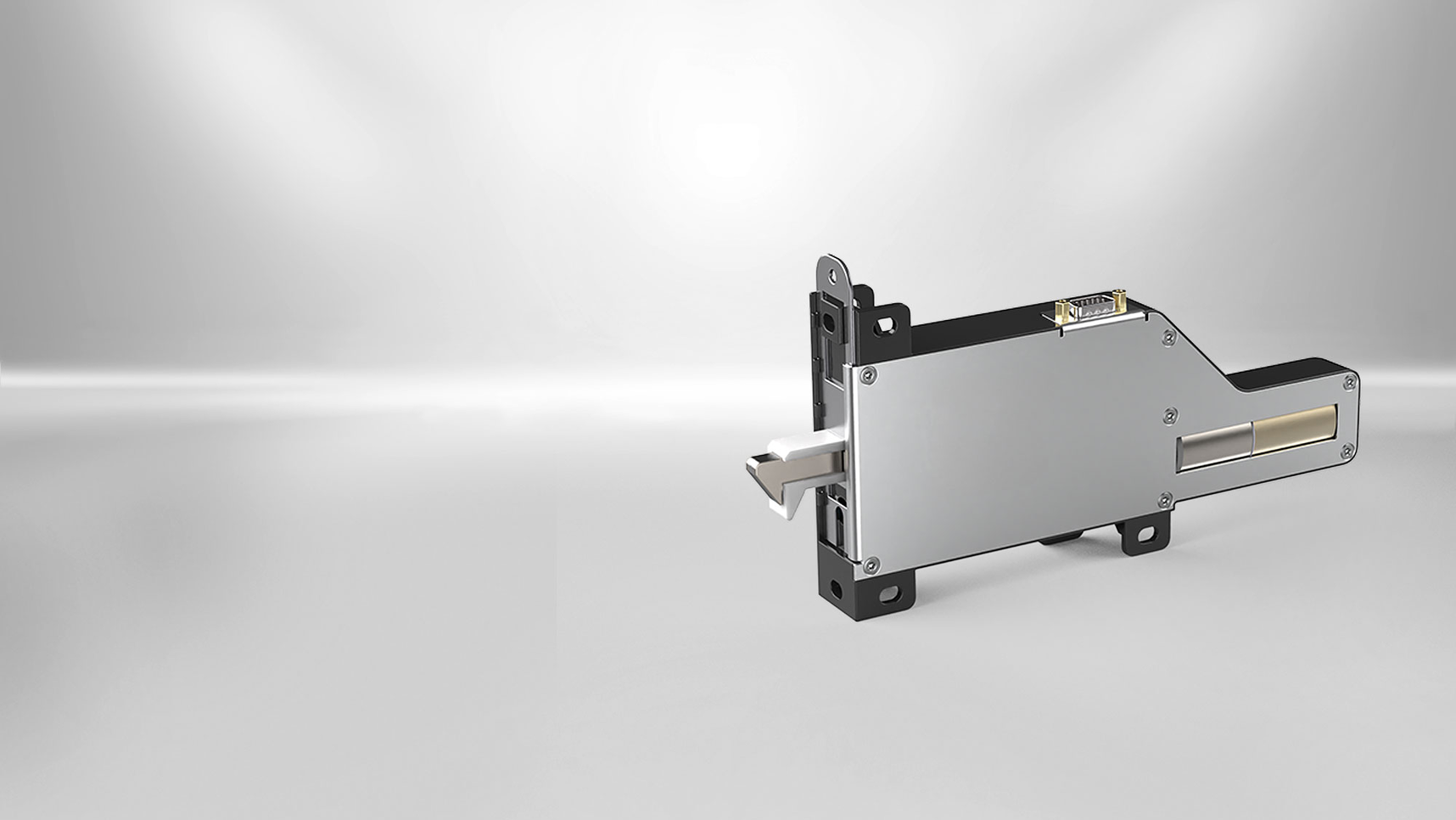

Motorized door lock as a high-tech locking system

As a manufacturer of high-tech locking systems, KENDRION has achieved a very reliable motorized door lock with many different locking applications.

The motorized door lock combines a high-power motor driven lock, positional sensing, mechanical locking and control electronics all-in-one. One of the features is closing the door with an adjustable continuous force, which extends the lifetime of the door seals. The lock is self-adjusting to maintain the seal characteristics and offers a big range for different end positions.

Application example industrial baking ovens

It features a ventilation system - useful for applications such as industrial baking ovens:

  • The lock has the capability to vent the oven during the opening and closing process
  • In this position, the hot steam can escape preventing the operator from getting burned



The following safety aspects are considered in our lock: Protection of the operator while locking the door, protection of the door mechanism against damage, EMC-protection, overload fuse.



Benefits at a glance

  • Large stroke range
  • Multiple switching positions
  • High closing forces
  • Optional torque control
  • Fully-automated multi positioning
  • Manual emergency unlocking
  • High-quality sound perception

Technical Data

Parameter Value
Travel 40 mm
Speed 6.5 mm/s
Sensors 6 x positional sensors (open collector 30mA), 1 x microswitch
Maximum closing force 400 N
Voltage supply 24 V DC
Power 19 W (@ 24 V DC)
Operating temperature 0 °C...+80 °C
Housing Polyamide
Dimensions (W x H x D) 117 x 227 x 30 mm

Downloads

Motorized door lock
pdf - 280 KB
Datasheets
Overview locking line
pdf - 161 KB
Operating instructions
Instruction manual | Solenoid Lock HS7722
pdf - 2 MB
Brochures and Flyers, Datasheets
Digital Brochure | Locking Line: Products and Applications
pdf - 11 MB
The motorised door lock - Watch the video now and learn how it works!
Industrial Actuators & Controls
Sales Team Kendrion Malente

Visit our fairs

-
Parcel+Post Expo 2024

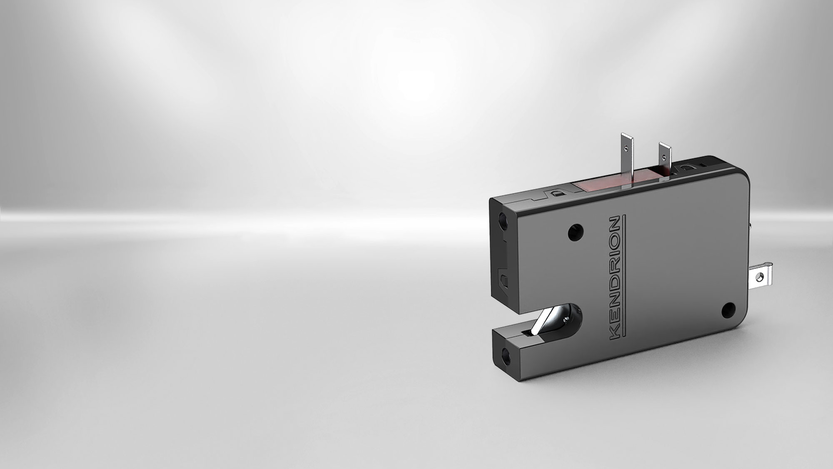

Discover our latest solenoids and door lock systems at Parcel+Post Expo 2024. Join us as we showcase our innovative solutions, including our new Compact Lock, tailored for lockers and parcel stations. Experience firsthand how our products can enhance security and efficiency in parcel and postal operations.
