Product Information

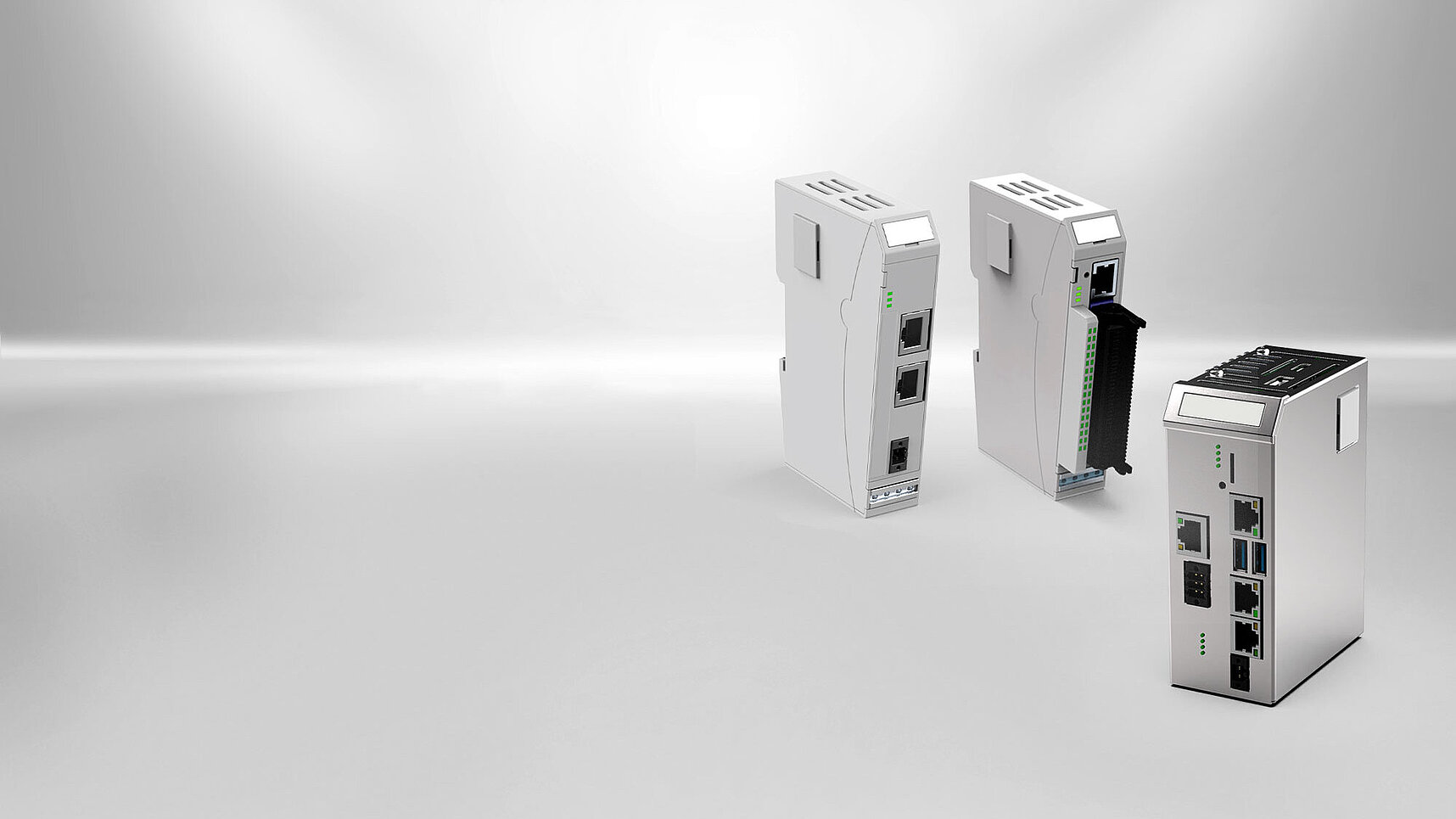

FIO is a system of I/O modules to link the process signals within an EtherCAT network. It consists of the bus coupler and various I/O modules.
In the EtherCAT bus coupler or small controller, the signal processing and the generation of system voltages occur for the I/O module. Between the I/O modules, the EtherCAT protocol is used.
At the end of the modular device the connection of go-and-return line will be closed automatically or transmitted with the help of an extender to the next EtherCAT participants. The small control FIO Controller 113 is a mini-IPC based on ARM.
Modern industry-standard interfaces allow the connection to higher-level controllers as well as the connection of fieldbus devices. The FIO Controller 113 can be individually extended with modules of the FIO I/O system, the programming is done with CODESYS V3.
The modular PLC is expandable with a Safety PLCand Safety I/O modules to meet the requirements of the Machinery Directive 2006/42/EC.
General Technical Specifications
| Parameter | Value |
|---|---|
| Type | Modular PLC |
| Programming with | CODESYS 3 |
| Fieldbus | EtherCAT ® - master, CANopen |
| Mounting | 35 mm DIN-Rail |
| Indication | LED, assigned to the clamping point locally |
| Shield connection | Directly at module |
| I/O connection | Spring- loaded plug with mechanical ejection |
| Connection voltage | 24 V DC (-20% / +25%) |
| Temperature range | 0 °C … 55 °C |
| Protection | IP 20 |
| Dimensions (WxHxD) | 25 x 120 x 90 mm |
| Housing material | Aluminium, plastic |
| Interference immunity | Zone B per EN61131-2 |
