Our Elevation Line

The Elevation Line has been specially designed for elevator technology and includes electromagnetic spring-applied brakes in different versions. The brake systems meet all safety requirements according to EN 81 and offer special solutions for different drive concepts.

Elevation brakes from Kendrion are characterised by a compact design and a constant braking torque. Therefore the brake systems are suitable for elevator machines with gears or for gearless drive systems and offer the ideal solution for both rope and belt systems.

The built-in microswitches allow remote monitoring of the switching status of the brake. All versions are equipped with a manual release for manual operation of the brake in the event of an elevator system failure.





Features at a glance

  • Redundant braking system
  • Constant braking torque
  • Suitable for increased safety requirements
  • Switching status monitoring by means of microswitches
  • Reliable and proven technology

Versions

Kendrion Elevation Line spring-applied brakes with three versions made for elevator technology

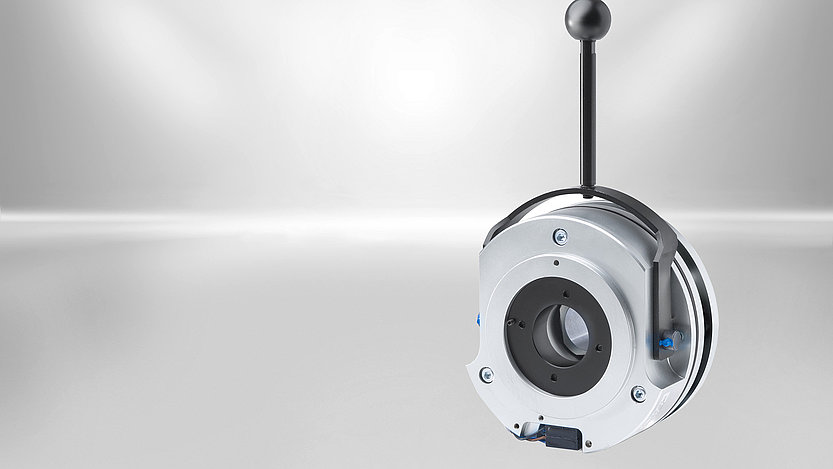

Spring-applied single-disc brake 76 461..A00

- Holding brake with emergency stop function

- Specially designed for elevator machines with gearbox

- Suitable for rope technology

- Torque range from 75 to 220 Nm

- Travel speed up to 3 m/s

- Adjustable torque

- Hand release mounted

- Patented single circuit safety concept according to EN 81-1

- Lift Directive 95/16/EC



Kendrion Elevation Line spring-applied brakes with three versions made for elevator technology
Spring-applied single-disc brake 76 451..A00

- Holding brake with emergency stop function

- Specially designed for elevator machines with gearbox

- Suitable for belt technology

- Torque range from 280 to 440 Nm

- Travel speed up to 3 m/s

- Adjustable torque

- Hand release mounted

- Patented single circuit safety concept according to EN 81-1

- Lift Directive 95/16/EC



Kendrion Elevation Line brake system is used for elevator technology due to a patented safety concept

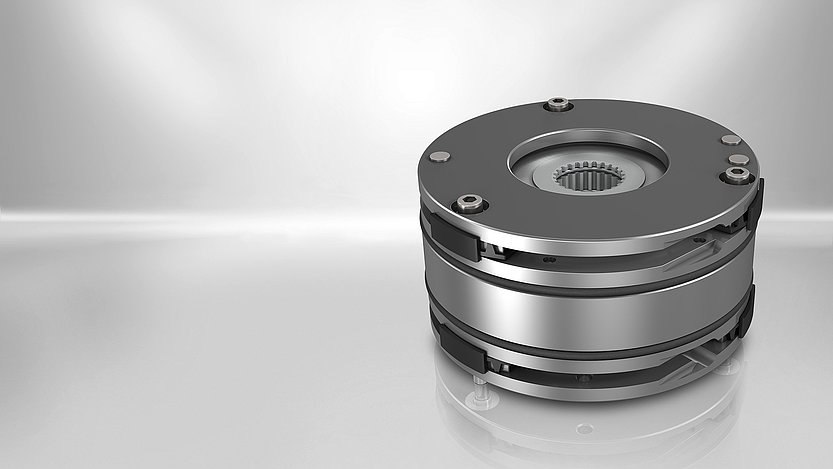

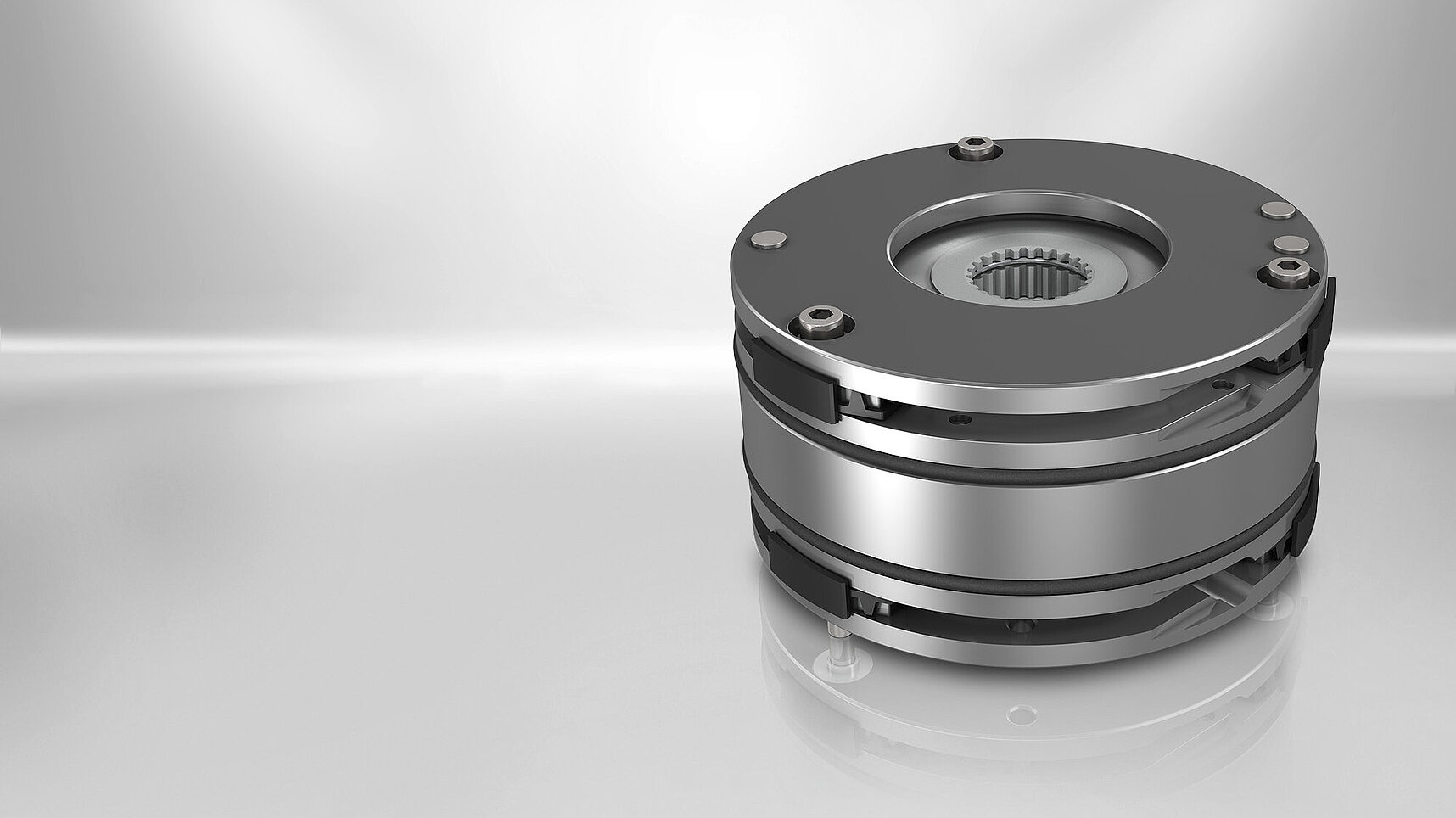

Spring-applied double-circuit brake 78 110..A00

- Holding brake with emergency stop function

- Especially designed for gearless elevator machines

- Suitable for belt and rope technology

- Torque range from 2x100 Nm to 2x700Nm

- Travel speed up to approx. 4m/s

- High energy braking

- Patented noise damping

- Independent opening of the brake circuits with possibility of soft braking

- Optional mounting kit for encoders

- Optional retrofittable manual release

- Safety requirements according to EN 81-20:2014 and EN 81-50:2014

- Lifts Directive 2014/33/EU



Technical Details

Type SA-single-disc brake SA-single-disc brake SA-double-circuit brake
Version 76 461..A00 76 451..A00 78 110..A00
Transmittable torque 75 Nm up to 440 Nm
Standart nominal voltage 205 VDC 205 VDC 102 VDC
Protection Class IP44 IP44 IP21
Ambient temperature -5 to +35 °C -5 to +35 °C +5 to +40 °C
