Our Slim Collection

Rectifiers for AC voltage and PWM modules for DC voltage

As the trend is towards compact designs, electric drives with high power density are in demand in many applications today. At the same time, however, the integration of electronic assemblies plays an essential role in making drives more intelligent and efficient.  The temperature balance in the application is thus becoming more critical and solutions for heat reduction are gaining in importance.

Kendrion has reacted to these requirements and developed the control modules of the "Slim Collection" especially for this purpose. They are offered as PWM modules for servo motors or as rectifiers for asynchronous motors and are suitable for brakes up to approx. 225 W holding or 450 W switching power. For fast and powerful switching on, the full switching voltage can be provided for a limited time, which shortens the opening time. Afterwards, the electronics switch down to a variable value under microcontroller control, resulting in energy savings of up to 75% and heat reduction. Thanks to the use of highly integrated electronic components, the modules also take up significantly less space than conventional solutions.

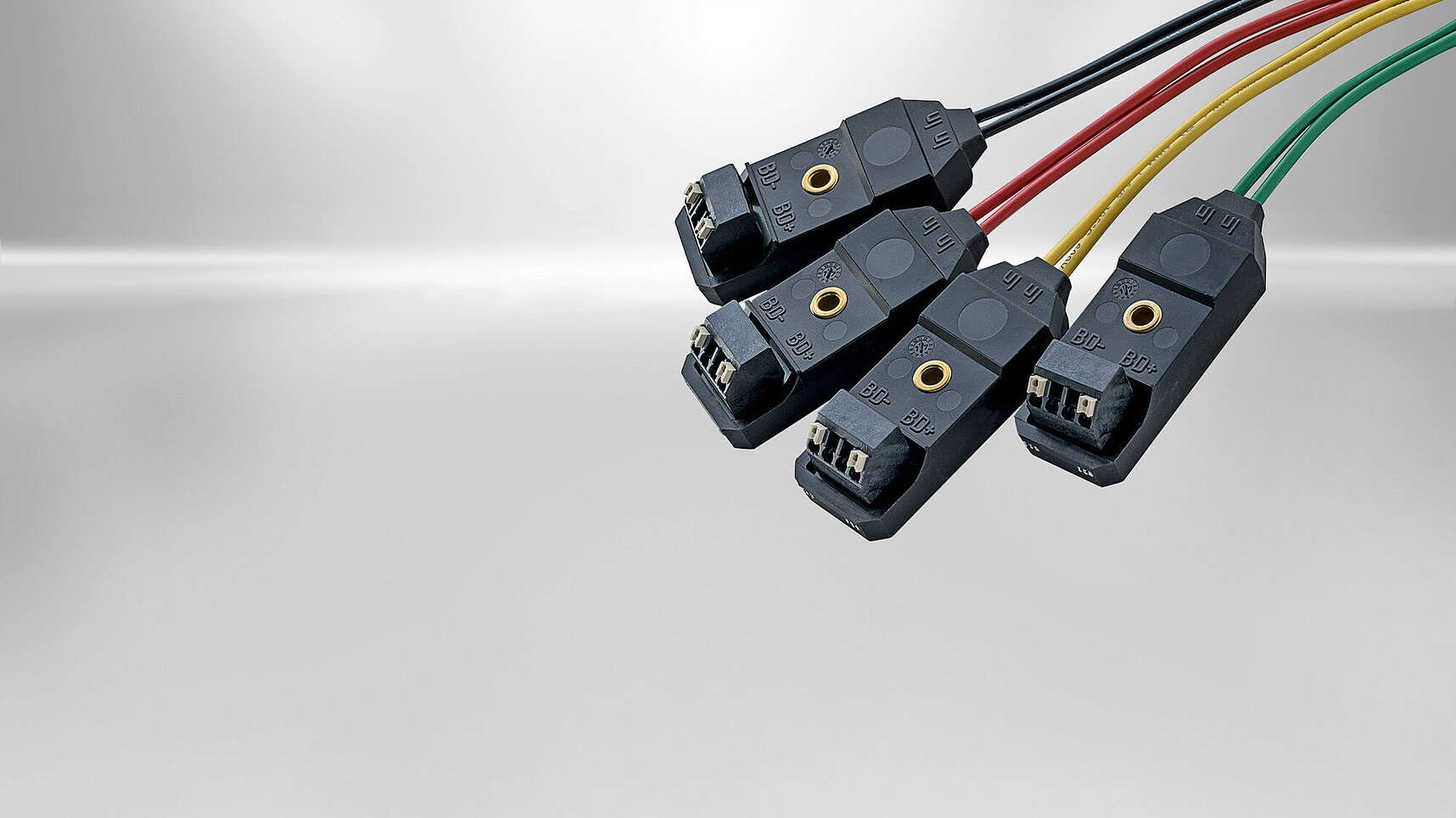

The complete electronics are housed on a plastic-molded circuit board and can thus be mounted close to the drive or in the terminal box of the motors with just one central screw. In addition, an optimized manufacturing process allows smaller quantities to be produced at low cost.

The advantages can be summed up in a few words: compact design, high power density, simple assembly and favorable price.

Features at a glance

  • Cost-effective
  • Very small design (LxBxH): 60x24x19 mm
  • Versatile options for assembly and connection
  • Integrated fast shutdown
  • Energy savings up to 75%

Versions

  • Slim Collection AC - overexcition
    These types of Slim Collection AC operate as a time controlled rectifier with integrated electronic fast turn-off through voltage detection.

  • Slim Collection AC - half-wave/bridge
    These types of Slim Collection AC operate as a half-wave/bridge rectifier with integrated electronic fast turn-off through voltage detection (depending on type).

  • Slim Collection DC - DC voltage
    The Slim Collection DC operates as a time-controlled PWM amplifier (pulse width modulation).

Technical Details

Type Slim Collection AC - overexcition Slim Collection AC - half-wave/bridge Slim Collection DC - with DC voltage
Rectification Time-controlled bridge / one-way switching Bridge / half-wave rectifier Controlled pulse width modulation (PWM)
Rated input voltage 100 VAC to 240 VAC / 220 VAC to 500 VAC 0 VAC to 500 VAC 24 VDC to 48 VDC
Output voltage Uin * 0.89 / Uin * 0.445 Uin * 0.89 or Uin * 0.445 50% / 70% / other settings from customer request possiblw
Output current Overexcitation 2.0 A / Stop 1.0 A max. 0.8 A (depending on type) max. 2.0 A
Quick shutdown yes (via internal voltage detection) yes (depending on type) yes (depending on type)
Connections Clamp and wire Clamp and wire Clamp and wire
Nominal excitation time 0.2s 0.2s 0.2s
Datasheets
Datasheet | Slim Collection | 34_x0125C0x
pdf - 248 KB
Datasheets
Datasheet | Slim Collection | 32_x710xB5x
pdf - 208 KB
Datasheets
Datasheet | Slim Collection | 32_x7101B5x
pdf - 255 KB
VideoSlim Collection
Kendrion Tutorial - Electronic module for electromagnetic brakes
Electromagnetic brakes can be optimized by using electronic control modules. These can improve the technical properties and reduce heat and energy consumption.

Discover the world of electronic modules and rectifiers - now available at Conrad!

We are proud to announce that our high-quality electronic modules and rectifiers products are now available at the Conrad online store! Immerse yourself in a wide range of innovative technologies and smart solutions from the comfort of your own home.
