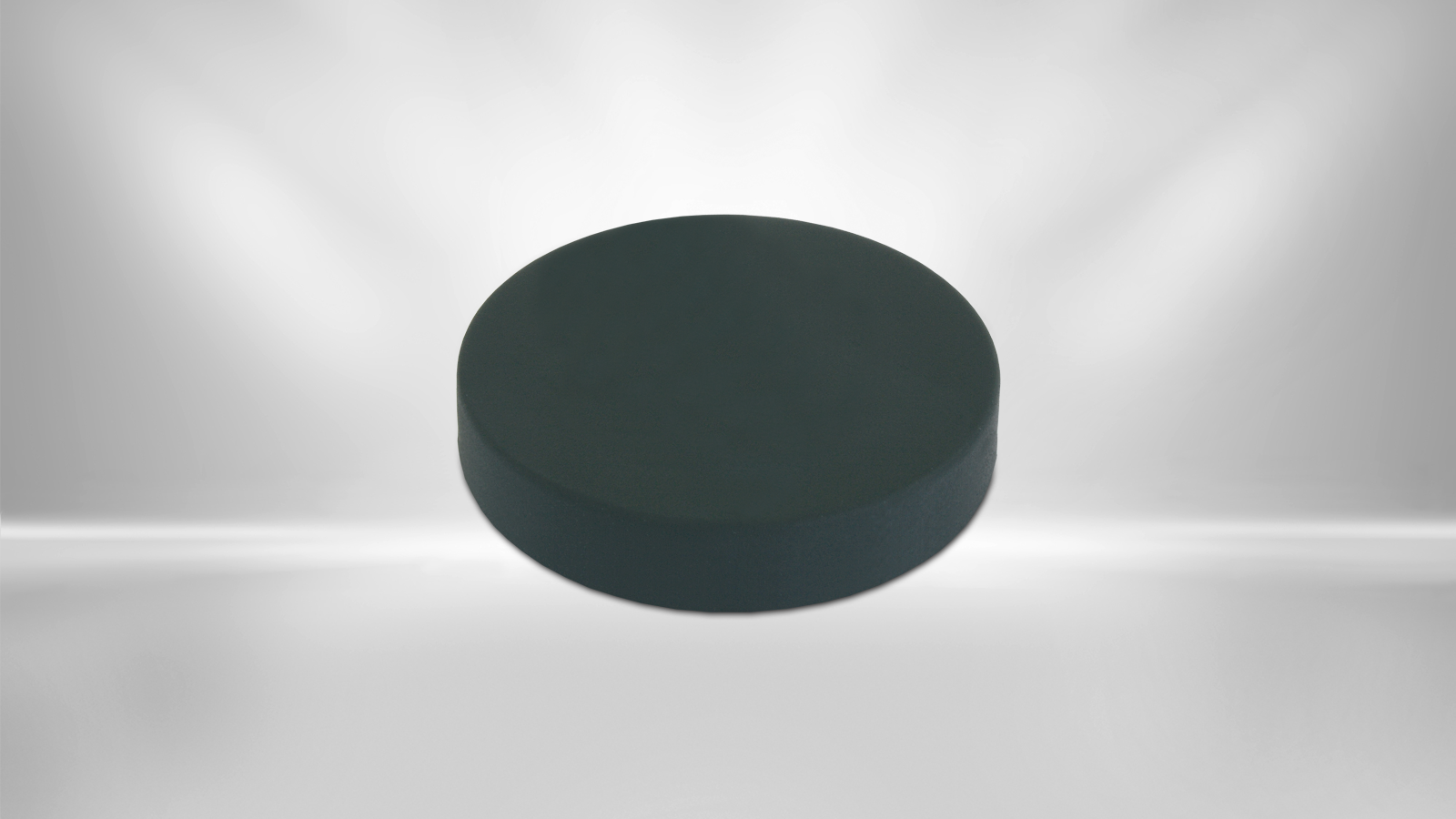

Rubber-covered flat gripper NdFeB
550 4056 31
Flat gripper with a neodymium magnet in a rubber-coated steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has no hole and is usually glued or pressed in.
Technical details
| Description | Value |
|---|---|
| Design | without thread |
| Material | Neodym |
| Force | 75 N |
| Diameter | 31 mm |
| Height | 6 mm |
| Weight | 25 g |
| Temperature | 60 °C |
| Housing | rubber coated |
