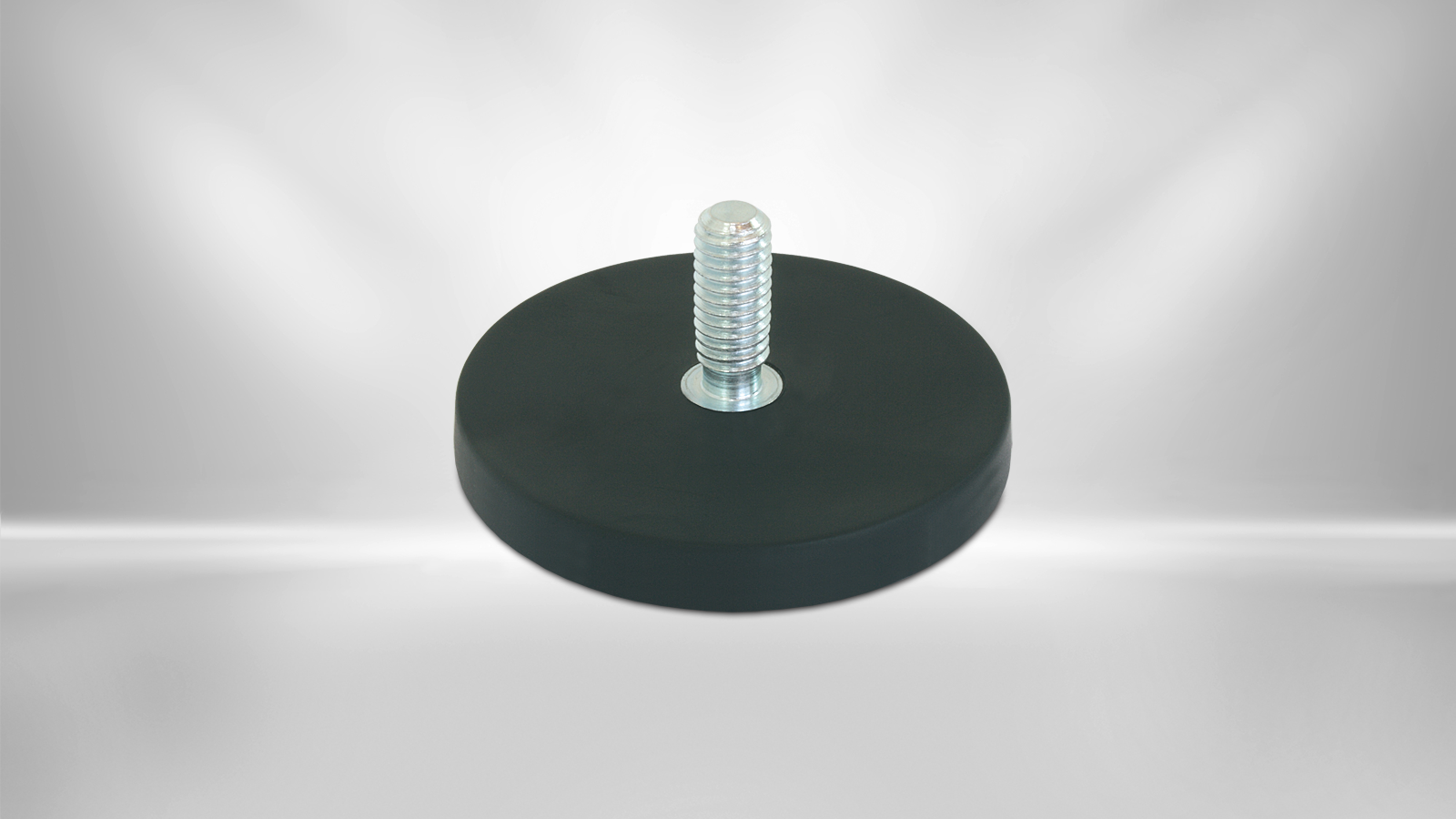

Rubber-covered flat gripper NdFeB
550 4055 43
Flat gripper with a neodymium magnet in a rubber-coated steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has a threaded pin with an external thread.
Technical details
| Description | Value |
|---|---|
| Design | with threaded pin |
| Material | Neodym |
| Force | 85 N |
| Diameter | 43 mm |
| Height | 6 mm |
| Total height | 21 mm |
| Weight | 32 g |
| Thread | M6 |
| Temperature | 80 °C |
| Housing | rubber coated |
