Rod gripper Alnico
550 4013 16

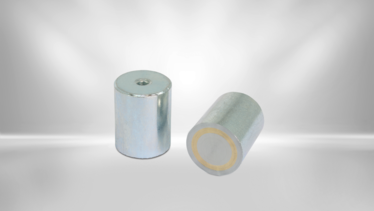

Rod gripper with a AlNiCo magnet in a steel housing. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The rod gripper has a central internal thread.
Technical details
| Description | Value |
|---|---|
| Design | with internal thread |
| Material | AlNiCo |
| Force | 20 N |
| Height | 20 mm |
| Shortened to | 6 mm |
| Weight | 30 g |
| Temperature | 450 °C |
| Thread | M4 x 5 |
| Fitting Tolerance | h6 |
| Housing | steel |
