Edge Controller & PLC
Control systems for automation
Compact Control Systems
The compact control systems from Kendrion support EtherCAT® and other industrial fieldbus systems. The control systems enable deterministic real-time communication with drive controllers and I/O modules. The devices meet the requirements of classical PLC automation. The devices are programmed using the CODESYS Development System V3 and, depending on the variant, also support Softmotion or Softmotion+CNC Robotics applications.
Edge Controllers and IT/OT Connectivity
Kendrion Edge Controllers complement the control systems at the edge level. The Edge Controllers perform tasks related to local data processing and protocol coupling between OT and IT systems. The Edge Controllers enable the execution of container-based applications close to the machine.
Products
(6)
|
Title
|
Type
|
Configuration
|
Function
|
Model
|
Product status
|
Processor
|
Graphics Interfaces
|
Operating system
|
Software
|
Main memory / working memory
|
Non-volatile memory
|
Mass storage / removable storage
|
Internal memory / Drive
|
Interfaces
|
Digital I/Os (integrated)
|
Field bus interfaces
|
Housing material
|
Mounting
|
Dimensions (W x H x D)
|
IP-Protection Class
|
Supply voltage
|
Operating temperature
|
Cyber Security, Compliance (CRA)
|
Certifications / Standards
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

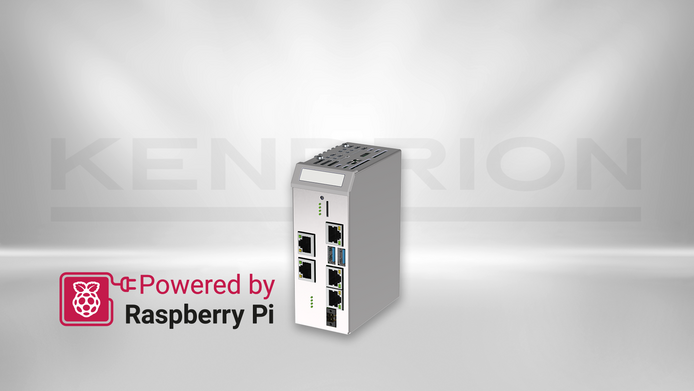

Econo 328 | 640 001 28 000 | IOT Controller | Embedded PC | Control cabinet modul | Standard product | Quad -core ARM Cortex A72 (1, 5 GHz), Raspberry Pi 4 | HDMI interface, 3840 × 2160p @ 60 Hz (4K) | Linux RT | Drivers for USB extensions, SOFT PLC, API for hardware, Graphic, optional CODESYS Soft PLC | 2GB DDR4L | 128 kB | µSD(HC)-Card Slot up to 32 GByte | eMMC Speicher 8 GByte | 2 x Ethernet (SW) 1 Gbit, 1 x Ethernet 1 Gbit, 2 x Ethernet (SW) 100 Mbit | 2x USB3.0, 1x USB2.0 | - | Stainless steel, heat sink made of aluminum | DIN-rail mounting | 51 x 125 x 90 mm, mit Lüfter ca. 51 x 145 x 100 mm | IP20 | 9, 0 …28, 8 V DC, Powerfail functions, 1 s mini UPS | 0°C...+40 °C without power reduction, with fan up to +55 °C | In progress | CE / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | |
|

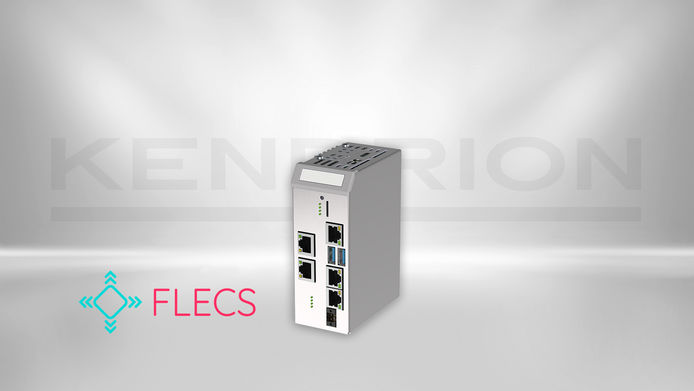

Econo 328 APP | 640 001 28 100 | IOT Controller | Embedded PC | Control cabinet modul | Standard product | Quad -core ARM Cortex A72 (1, 5 GHz), Raspberry Pi 4 | HDMI interface, 3840 × 2160p @ 60 Hz (4K) | Linux RT | The device has a licence to install automation apps from the FLECS Marketplace Ready for extension with automation apps from the Flecs Marketplace | 2GB DDR4L | 128 kB | µSD(HC)-Card Slot up to 32 GByte | eMMC Speicher 8 GByte | 2 x Ethernet (SW) 1 Gbit, 1 x Ethernet 1 Gbit, 2 x Ethernet (SW) 100 Mbit | 2x USB3.0, 1x USB2.0 | - | Stainless steel, heat sink made of aluminum | DIN-rail mounting | 51 x 125 x 90 mm, with fan approx. 51 x 145 x 100 mm | IP20 | 9, 0 …28, 8 V DC, Powerfail functions, 1 s mini UPS | 0°C...+40 °C without power reduction, with fan up to +55 °C | In progress | CE / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | |
|

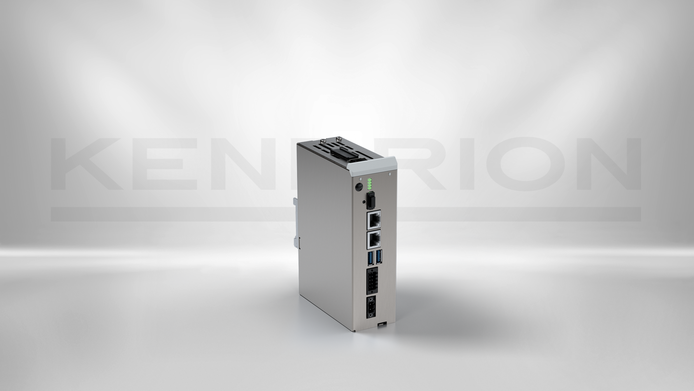

Econo 206 WV | 640 200 207 002 100 | CODESYS Compact PLC | Compact CODESYS PLC | Control cabinet modul | Available - Not recommended for new projects (NCNR) | Freescale i.MX6X ; 1 GHz | HDMI interface, 1920x1080p60 (Full HD) in connection with TargetVisu option | Linux RT | CODESYS V3 Soft PLC, WebVisu | 512 MB RAM | Stored in flash memory | Flash disk 256 MB | SD card | 2 x Ethernet, 1 x RS232, 1 x RS485, 2x CAN, 2 x USB 2.0 | - | EtherCAT-MainDevice, OPC UA, CANopen Manager, Modbus-Client TCP/RTU | Stainless steel, heat sink made of aluminum | DIN rail mounting | 50 x 190 x 115 mm | IP20 | 24 V DC (± 20%), incl. 1 second UPS | - | - | - | |
|
Econo 226 WV | 640 200 209 002 400 | CODESYS Compact PLC | Compact CODESYS PLC | Available - Not recommended for new projects (NCNR) | Standard product | Freescale i.MX6X Quad Core; 1 GHz | HDMI interface, 1920x1080p60 (Full HD) in connection with TargetVisu option | Linux RT | CODESYS V3 Soft PLC, WebVisu | 1024 MB RAM | Stored in flash memory | Flash disk 256 MB, 1 GB pSCL eMMC | SD card | 2 x Ethernet, 1 x RS232, 1 x RS485, 2x CAN, 2 x USB 2.0 | - | EtherCAT-MainDevice, OPC UA Server, CANopen Manager, Modbus-Client TCP/RTU | Stainless steel, heat sink made of aluminum | DIN-rail mounting | 50 x 190 x 115 mm | IP20 | 24 V DC (± 20%), incl. 1 second UPS | - | - | - | |
|

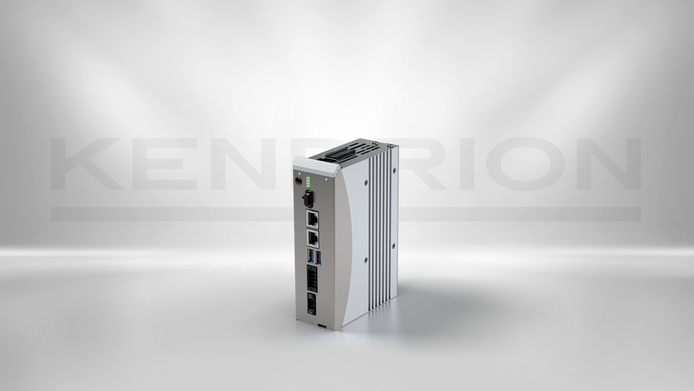

Econo 226 WV SM | 640 200 209 012 400 | CODESYS Compact PLC | Compact CODESYS PLC | Control cabinet modul | Available - Not recommended for new projects (NCNR) | Freescale i.MX6X Quad Core; 1 GHz | HDMI interface, 1920x1080p60 (Full HD) in connection with TargetVisu option | Linux RT | CODESYS V3 Soft PLC, WebVisu | 1024 MB RAM | Stored in flash memory | Flash disk 256 MB, 1 GB pSCL eMMC | SD card | 2 x Ethernet, 1 x RS232, 1 x RS485, 2x CAN, 2 x USB 2.0 | - | EtherCAT-MainDevice, OPC UA Server, CANopen Manager, Modbus-Client TCP/RTU | Stainless steel, heat sink made of aluminum | DIN-rail mounting | 50 x 190 x 115 mm | IP20 | 24 V DC (± 20%), incl. 1 second UPS | - | - | - | |
|
Econo 226 WV SM CNC+Robotics |
640 200 209 022 400 | CODESYS Compact PLC | Compact CODESYS PLC | Control cabinet modul | Available - Not recommended for new projects (NCNR) | Freescale i.MX6X Quad Core; 1 GHz | HDMI interface, 1920x1080p60 (Full HD) in connection with TargetVisu option | Linux RT | CODESYS V3 Soft PLC, WebVisu, Softmotion CNC+Robotics | 1024 MB RAM | Stored in flash memory | Flash disk 256 MB, 1 GB pSCL eMMC | SD card | 2 x Ethernet, 1 x RS232, 1 x RS485, 2x CAN, 2 x USB 2.0 | - | EtherCAT-MainDevice, OPC UA Server, CANopen Manager, Modbus-Client TCP/RTU | Stainless steel, heat sink made of aluminum | DIN-rail mounting | 50 x 190 x 115 mm | IP20 | 24 V DC (± 20%), incl. 1 second UPS | - | - | - |
