Emission-free into the production of the future: Heat inductively!

In many industrial processes it is important to generate heat. Often, this heat must be available quickly and it must be possible to turn it off just as quickly. In addition, this heat must be distributed evenly and must be able to be controlled dynamically and according to demand. The heating should also require as little energy as possible.

With inductive heating systems from Kendrion you can expect efficient, precise and clean solutions for your heated tools. Find out more now!

    Induction heating - The superior heating strategy in industrial processes

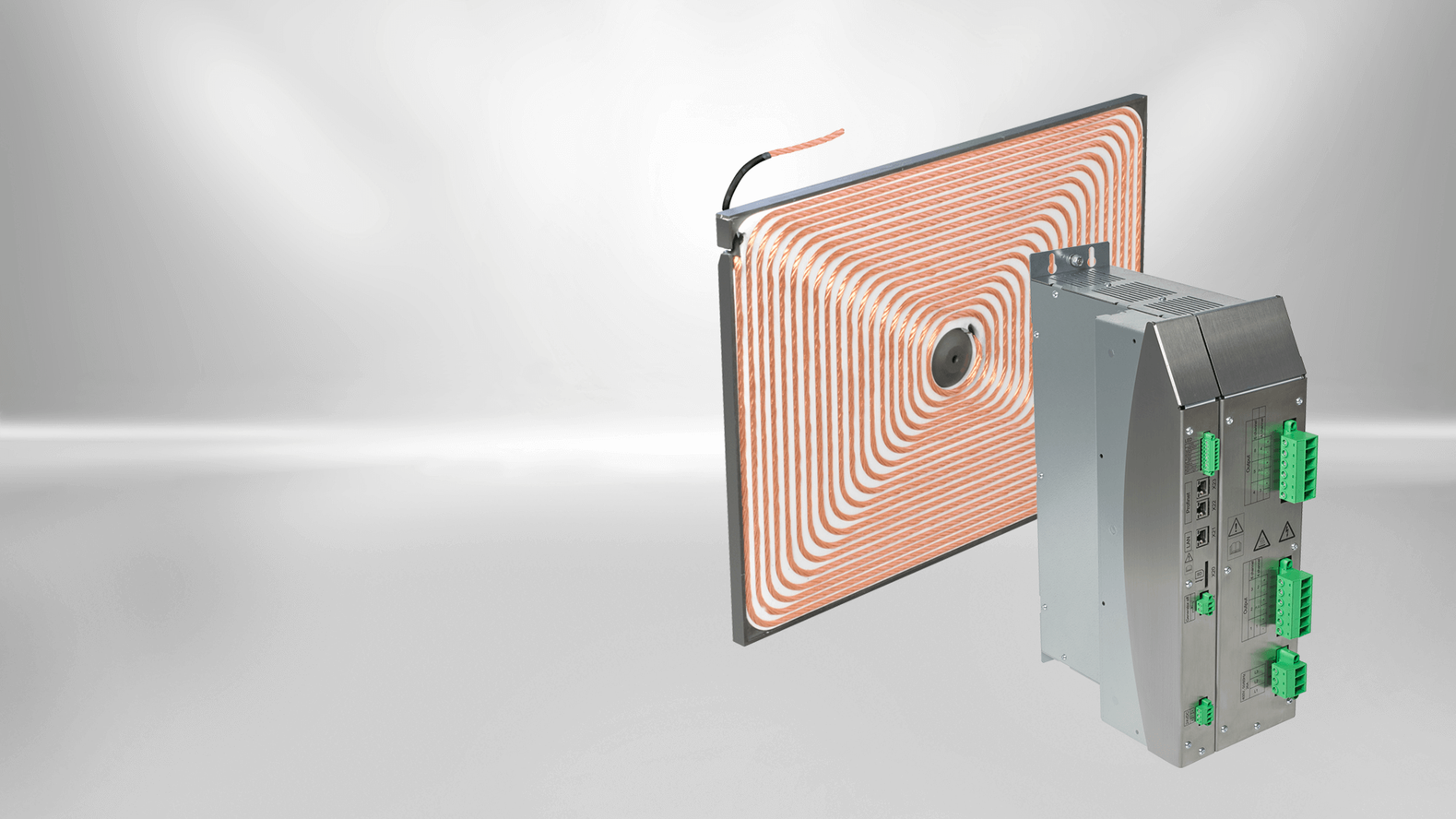

    The modular heating system (MHS) consists of a controller and up to seven generator modules that supply inductors with optimally adapted power.

    The induction heating systems are designed for manufacturing processes involving electrically generated heat. This includes applications in the plastic processing industry and the textile industry as well as drying processes in the paper industry.

    Induction heaters are increasingly being used to heat the tools such as rollers, rolls or cylinders. Not only are they emission-free, they can also provide the heat quickly and switch it off again just as quickly. The inductive heat (up to 250°C) can be evenly distributed and allows dynamic control exactly as required.

    Heating according to the eddy current principle

    The technology is based on the eddy current principle, in which a magnetic alternating field is generated with the help of high-frequency alternating current, which is introduced into the metal in a defined manner. The resulting eddy current losses generate a thermal power that can be precisely dosed by changing the current flow. Due to the exact controllability of the temperature, the heating process can be reproduced exactly, which ensures a high quality of the process. The temperature is measured directly in the jacket with up to four measuring points. In addition, uniform heating is achieved by a multi-zone design of the surface and roller inductor.

    Kendrion offers energy-optimised induction heating systems whose components are precisely matched to each other.

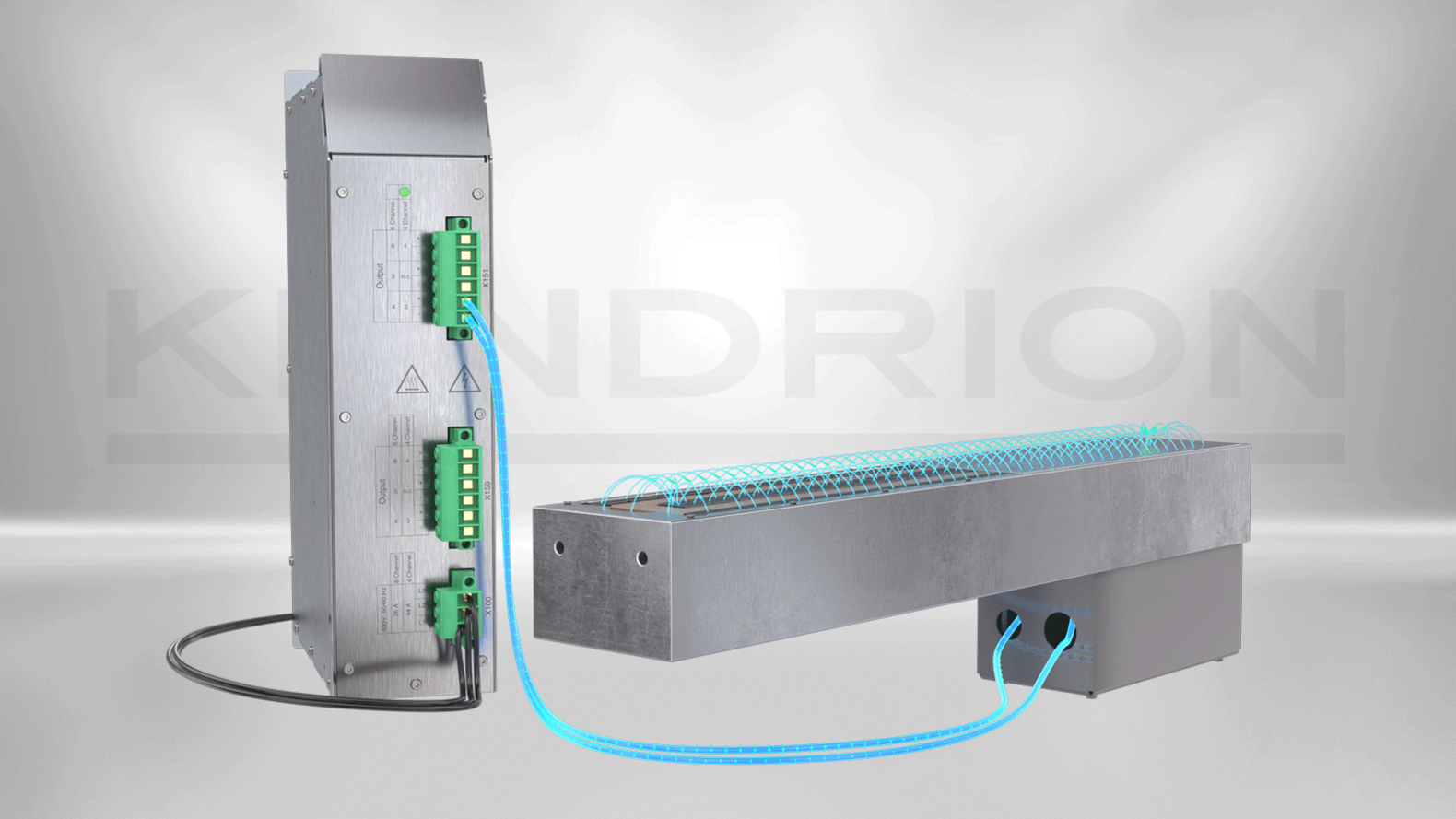

    The Kendrion induction generators are designed as a modular system. They consist of a controller and up to 7 stackable induction generators. The controller can be integrated into the control of a machine via a fieldbus interface (e.g. PROFINET®). The control of the individual induction generators and the retrieval of status messages is carried out for all connected generators via the central controller. Depending on the configuration, the controller can also control the heating channels with integrated PID controllers. The units are designed for installation in control cabinets.

    DOWNLOAD FLYER - INDUCTIVE HEATING

      Inductive HeatingKeyfacts

      Benefits at a glance

      Maximum machine availability
      •  Fast heat-up time

      •  Quick start of production

      •  Maintenance-free, no oil changes, no slip-ring wear

      •  Simple tool change thanks to rapid cooling

      •  Very long service life thanks to cool bearings


      Optimum temperature control
      • Reproducible heating process (high quality assurance)

      • Temperature measurement directly in the surface with max. 4 measuring points

      • Uniform heating thanks to multi-zone design

      • Low unproductive time, as heat is generated directly in the surface



      CO2 reduction
      • Emission-free heating
      • High efficiency
      • No heat loss (e.g. from oil pipes)
      • No heating of unnecessary masses (e.g. oil)
      • No cooling unit required
      Safety and cleanliness
      • No machine contamination due to escaping media

      • Reduced risk of injury (e.g. due to hot oil)



      Excellent automation capabilities
      • Modern microprocessor-controlled electronics

      • Fieldbus capable: Profinet®, CANopen, EtherCAT®

      • Infinite diagnostic functions



      Tailored solution from Kendrion
      • Complete heating system with harmonized components

      • Modular design heating systems

      • Customized adaptions to meet your exact needs



      KendrionINDUCTIVE HEATING
      Optimize your industrial heating processes with induction heating! (German only)
      Hauke Ramm, Product and Project Manager for Inductive Heating Systems, shows how an inductive heating system works and how you can optimize your industrial heating processes inductively.
      Read more

      We support you from technical feasibility to series production!

      LEFT: Concept modular roller inductor (width: 125 mm, diameter: 120 mm - 400 mm, power: 3 kW per module; alternative dimensions and power on request) RIGHT: Thermographic image of an inductively heated roller (©Kendrion)

      By transforming your processes or plants to induction heating concepts, you are a pioneer and a visionary. Not only does the heating process become more climate-friendly, but above all you achieve an increase in productivity and the quality of the end products.

      With Kendrion, you have a partner at your side who not only specializes in the production of induction heaters, but also has extensive expertise in planning and design.



      What services does Kendrion offer?


      A core competence of Kendrion is numerical simulations of magnetic as well as fluid and thermodynamic processes. With our analysis tools, we can model even complex processes and design them with high precision. This enables us not only to evaluate the success of feasibility studies and preliminary developments, but also to produce concrete designs and samples as well as the final series product.
      We are happy to provide support both in an advisory capacity and in the active solution of technical problems.

          Representation FEM simulation inductor (©Kendrion)

          Our services include in detail:


          • Perform a joint process analysis

          • Set up functional specifications

          • Developing conceptual solutions

          • Creation of the design

          • Selection and adaptation of the induction generator

          • Development of the inductor

          • Realization of the series production

          Heat input and field distribution in magnetic circuit (©Kendrion)

              Downloads

              Datasheets
              Datasheet | Controller Profinet
              pdf - 651 KB
              Datasheets
              Datasheet | Induction Generator 4x7,5 kW
              pdf - 685 KB
              Datasheets
              Datasheet | Induction Generator 6x3 kW
              pdf - 686 KB
              Brochures and Flyers
              Flyer | Inductive Heating
              pdf - 667 KB

              FAQs: Inductive Heating

              What is induction heated in industrial processes?

              Induction heating is a fast and non-contact method of heating metals, preferably ferrous metals.

              What is inductive heating used for?

              Inductive heating systems from Kendrion are used in machines where process heat is required, such as heating rolls or tools. They are used in food processing, the textile industry or the printing and paper industry.

              How does induction heating work?

              A high-frequency alternating current is applied to an induction coil, which generates an electric field. The workpiece to be heated is placed in this field. The resulting eddy currents generate heat directly in the workpiece.

              What does an induction heating system consist of?

              An industrial induction heating system usually consists of an induction generator and an inductor. With Kendrion's Modular Heating System, systems with up to seven generators and 42 inductors can be built.

              What are the advantages of induction heating?

              Temperature, heating time and heat pattern are reproducible. With inductive heating systems, you can convert 90% of the expended energy into usable heat without burning fossil fuels. Process temperatures are reached in a very short time for typical workpieces thanks to high surface power and low masses. By designing the inductors and using multiple heating zones, a very precise surface temperature can be achieved, while the entire heating process can be controlled by induction generators and process control software.

              What are the advantages of inductive heating compared to the use of electric heating cartridges?

              Induction heating has several advantages over electric cartridge heaters. Firstly, inductive heating offers faster heating, as higher power can be transferred per surface and no thermal contact resistances need to be overcome. Precise temperature control is another advantage, which is particularly beneficial in applications with specific temperature requirements. In addition, induction heating often requires less maintenance due to fewer moving parts (e.g. no slip rings required), and maintenance itself is much easier as the inductors are more accessible. There is no need for the heating cartridges to get stuck in the bores or for poor heat transfer. Last but not least, this method minimises the risk of overheating and reduces the thermal load on other components, resulting in an overall more reliable and efficient heat transfer.

              What are the advantages of induction heating compared to the use of gas heaters?

              Induction heating offers a number of advantages compared to gas heating systems. The main advantage is that this technology can reduce energy consumption by up to 50%. The direct generation of heat in the workpiece enables efficient energy transfer and minimises losses. By dispensing with gas as a fuel, CO2 emissions can be minimised, resulting in a solution that is not only cost-efficient but also environmentally friendly. The precise controllability of induction heating also makes it possible to regulate the output individually from 0 - 100% in 1% increments. This leads to an exact adjustment of the heating parameters and thus to improved production processes and quality controls in industrial processes. In contrast to gas heating systems, induction heating eliminates potential safety risks such as gas leaks or open flames, which minimises operating hazards and improves overall safety in the workplace.

              What are the advantages of induction heating compared to the use of thermal oil heaters?

              Induction heating offers several advantages over thermal oil heaters. By generating heat directly in the material to be heated, it is more energy efficient as the energy losses caused by heating the oil in thermal oil heating systems are minimised. In addition, there are no heat losses from oil pipes, which further increases overall efficiency. Induction heating systems can be controlled much more precisely (from 0 - 100% in 1% increments) and enable individual control of specific areas, such as a roller, that are to be heated. Since higher power can be transmitted per area and no thermal contact resistances have to be overcome, faster heating is possible. Another advantage is the compactness of inductive heating systems compared to thermal oil heating systems. The absence of large temperature control units or pipework makes them particularly suitable for systems with limited space. Regular oil changes are no longer necessary, waste is avoided and maintenance costs are reduced, thus minimising overall operating costs. In addition, machines are not contaminated by leaking oil and the risk of injury is significantly reduced.

              Industrial Actuators and Controls
              Sales Team Kendrion Malente

              Based on our experience in many fields, we have built a brand-new induction system platform. It enables us to produce new product variants quickly and in large volumes, without requiring major R&D time and cost. Because of the modular design of our products, we can also offer a high level of customization. For instance, we can adapt the induction coils to suit practically a variety of workpieces, to deliver optimal heat patterns with minimal energy consumption.

              Are you looking for ways to convert your manufacturing processes to greener energy while increasing safety, efficiency and productivity?

              Let's shape the future together!

              With Kendrion you have a future-oriented partner at your side.
