Our Lean Collection

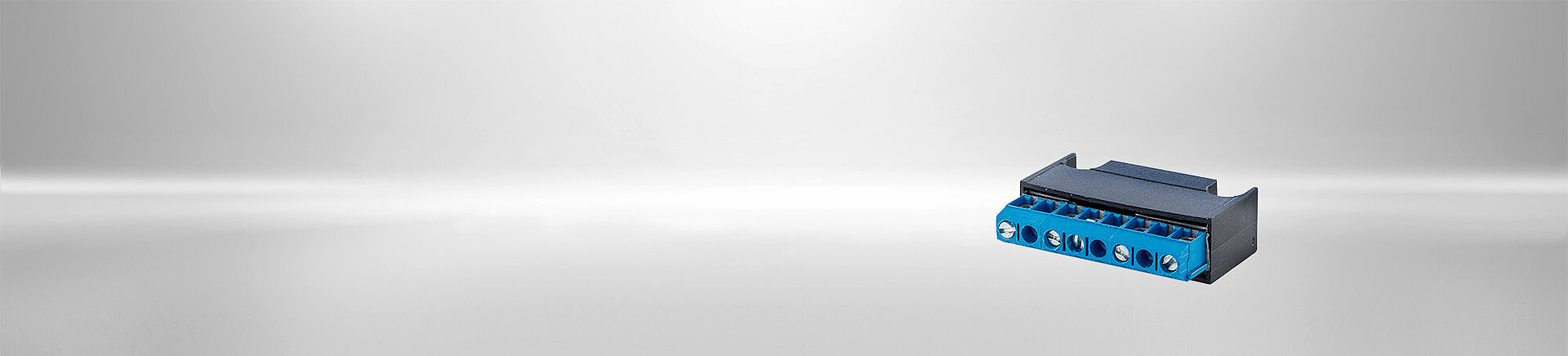

Compact single-phase rectifiers
These compact half-wave and bridge rectifiers are ideal for installation in space restricted junction boxes of brake motors. They can be delivered with flying leads or terminals for connection. Various accessories are available to meet different installation requirements.
Features at a glance
- Available with or without fast turn-off via auxiliary contact
- Very compact & Cost-effective
- Variety of mounting & connection options
- Designed for use with spring-applied brakes up to size 16
- When used in applications with minimal dynamic requirements, the rectifier can be
- installed in small junction boxes
Technical Details
| Features | With fast turn-off | Without fast turn-off |
|---|---|---|
| Rectification | Bridge / half wave | Bridge / half wave |
| Nominal input voltage | One-way until 415 VAC / Bridge until 250 VAC | until 500 VAC |
| Output voltage | Uin * 0.89 / Uin * 0.445 | Uin * 0.89 / Uin * 0.445 |
| Output current | Bridge 1 A / half wave 1 A | Bridge 2.0 A / half wave 1.0 A |
| Fast turn-off | Yes (with auxiliary contact) | No |
| Connections | clamp | Strands or clamp |
