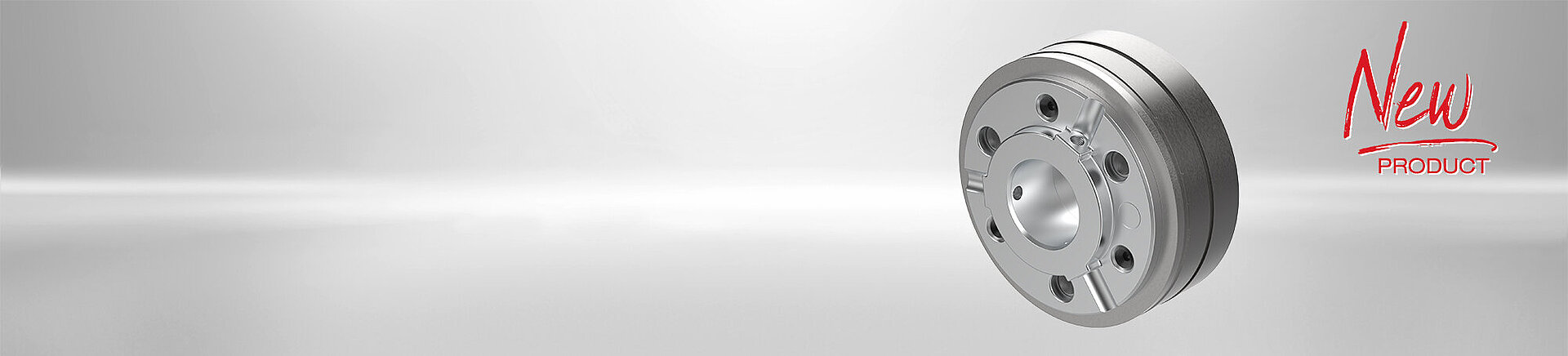

The new Slim PM brake – compact performance for modern servo applications

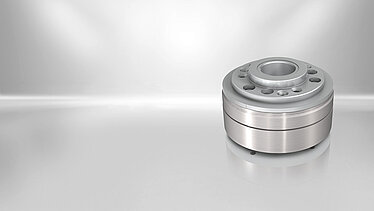

The Slim PM is a permanent magnet brake that has been specially developed for servo motors in the low and mid-torque range. It complements the High Torque Line, which is designed for larger servo motors with its enormous braking force of up to 280 Nm. The Slim PM Line has the same interface, but is significantly more compact and highly cost-effective. Thanks to the identical interface of both lines, designers benefit from maximum flexibility – without any adjustments to the motor design. Learn more about PM brakes for servo motors here.
With its compact design, high power density, and a wide torque range from 2.7 to 17 Nm, the Slim PM offers a cost-optimized and powerful solution. As a fail-safe holding brake with emergency stop function, it ensures maximum operational safety – even under demanding conditions from -40°C to +120°C.
The Slim PM was specifically designed for integration into low- and mid-torque servo motors and allows for both A- and B-side installation variants on the fixed bearing. In addition, it can be easily integrated into non-motor applications such as hand-held tripods or medical devices. This makes it the ideal choice for applications in automation, robotics, servo motor technology, and medical technology, where compact design, reliability, and precision are crucial.
Features at a glance
- Compact, powerful design thanks to innovative magnetic circuit
- Common motor interface to the proven High Torque Line
- Single-pole friction system for stable, reliable torque
- Backlash-free torque transmission
- Residual torque-free opening regardless of installation position
- Wear-free during dynamic direction changes
- Brakes factory-ground and torque-tested
- Optional protection against bearing lubricants
- Optional strand protection to protect the stator wires
- Optional ball bearing seat for precise brake centering and efficient installation
Visit our Kendrion Product Finder
In our product finder you can scroll through our product portfolio or use our technical filters. Finally, you receive all the technical data and downloads available.
Visit the product finder for industrial brakes
What advantages does the Slim PM offer compared to spring-applied brakes in low and mid-torque motor sizes?
What advantages does the Slim PM offer compared to spring-applied brakes in low and mid-torque motor sizes?
The Slim PM Line delivers significantly higher torque than conventional spring-applied brakes at the same size, enabling more compact and powerful servo drives. With its cost-efficient design, it matches spring-applied brakes in price while offering the superior performance of permanent magnet technology. Mechanically and electrically identical to Kendrion’s High Torque Line, it allows the use of a unified interface across different motor power classes. Its compact design reduces installation space by up to 25 % and allows motors up to 5 % shorter. The Slim PM is maintenance-free, backlash-free, and wear-free, ensuring high precision, fast switching times, and energy-efficient operation.
